F1 FUEL TANK COCK ASSY (XTM 200 & XTM-R 200)

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

306-12Y2-001

FUEL COCK ASSY

25.00

2

212-KG-7

CLIP 1

0.00

3

700-5787-05010

FLANGE BOLT M6X10

0.00

4

212-KG-1

CLIP

0.00

5

506-12Y2-003

RUBBER PIPE 1

0.00

6

506-12Y2-004

RUBBER PIPE 2

0.00

Enquiry

F2 MUFFLER (XTM 200 & XTM-R 200)

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

225-20Y1-002

EX MUFFLER ASSY

350.00

2

225-20Y1-002-001

EXHAUST PIPE

150.00

3

225-20Y1-002-002

SEAL SLEEVE

10.00

4

225-12Y2-002-003

CLIP(EXHAUST)

15.00

5

700-5876-08020-BZ

HEXAGONAL-HEAD BOLT M8X20

0.00

6

225-20Y1-002-004

MUFFLER

300.00

7

225-12Y2-002-005

COVER(EXHAUST)

30.00

8

225-12Y2-002-006

BOLT

0.00

9

700-5787-08020-AG

FLANGE BOLT M8X20

0.00

10

700-6177-08-AG

FLANGE NUT M8

0.00

11

700-70.1-08025-WC

HEX.SOCKET BOLT

0.00

12

225-12Y2-002-007

EXHAUST WASHER

5.00

13

F2-013

BUSH,MUFFLER

0.00

14

F2-014

RUBBER,MUFFLER

0.00

Enquiry

F3 ABSORBER ASSY, REAR (XTM 200 & XTM-R 200)

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

214-12Y2-001

ABSORBER ASSY,REAR

380.00

2

214-12Y2-001-001

ABSORBER

0.00

3

214-12Y2-001-002

BUSH

0.00

4

700-6187.2-12-AG

FLANGE LOCK NUT

0.00

5

700-5787-12050-AG

FLANGE BOLT M12X50

0.00

6

700-70.2-12050-AG

HEX SOCKET BUTTON HEAD SCREW

0.00

7

F3-007

O-RING

0.00

8

F3-008

SPACER,ABSORBER

0.00

Enquiry

F4 SWITCH - LEVER (XTM 200 & XTM-R 200)

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

614-20Y1-001L

LH.SWITCH

79.00

2

614-20Y1-001L-001

SCREW

0.00

3

614-20Y1-001L-002

SCREW

0.00

4

614-20Y1-001R

RH.SWITCH

69.00

5

614-20Y1-001R-001

SCREW

0.00

6

504-20Y1-001L

GRIP.LH

14.00

7

504-20Y1-001R

GRIP.THROTTLE

15.00

8

307-20Y1-001

LH.LEVER,BRAKE

30.00

9

307-20Y1-001-001

SEAT.LH.LEVER

0.00

10

307-20Y1-001-002

LH.LEVER

0.00

11

307-20Y1-001-003

BOLT

0.00

12

307-20Y1-001-004

NUT

0.00

13

307-20Y1-001-005

ADJUST NUT

0.00

14

307-20Y1-001-006

ADJUST SCREW

0.00

15

502-20Y1-001

DUSTPROOF COVER

0.00

16

305-20Y1-001

CYLINDER ASSY.UPPER

180.00

17

305-20Y1-001-001

CYLINDER

140.00

18

305-20Y1-001-002

RH.LEVER

20.00

19

305-20Y1-001-003

SWITCH.FR.BRAKE

12.00

20

305-20Y1-001-004

WASHER

0.00

21

305-20Y1-001-005

SPRING WASHER

0.00

22

305-20Y1-001-006

SCREW

0.00

23

503-20Y1-002-001

CLUTCH WIRE

0.00

24

503-20Y1-002-002

RUBBER PIPE

0.00

25

503-20Y1-002-003

SPRING

0.00

26

503-20Y1-002-004

CLUTCH WIRE ASSY

22.00

27

F4-027

SWITCH.LH.LEVER.BRAKE

0.00

28

F4-028

SCREW,CYLINDER

0.00

29

F4-029

FRONT,CYLINDER KIT

20.00

30

F4-030

REAR,CYLINDER KIT

20.00

Enquiry

F5 FRONT BRAKE HOSE (XTM 200 & XTM-R 200)

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

305-12Y2-002-001

HOSE.FRONT BRAKE

80.00

2

305-12Y2-002-002

BOLT

0.00

3

305-12Y2-002-003

WASHER

0.00

4

305-12Y2-002-004

RING.STEADY

0.00

5

305-12Y2-002-005

BOLT

0.00

Enquiry

F6 FRONT CALIPER (XTM 200 & XTM-R 200)

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

305-12Y2-003-001

BED.CALIPER

80.00

2

305-12Y2-003-002

GUIDE PIN

5.00

3

305-12Y2-003-003

PAD SET,FRONT

30.00

4

305-12Y2-003-004

WASHER

1.00

5

305-12Y2-003-005

CAP.BUSH

4.00

6

305-12Y2-003-006

CARRIER SET.CALIPER

38.00

7

305-12Y2-003-007

BOOT.GUIDE PIN

2.00

8

305-12Y2-003-008

NUT

1.50

9

305-12Y2-003-009

GUIDE PIN

7.00

10

305-12Y2-003-010

BOLT

2.50

11

305-12Y2-003-011

BLEEDER

10.00

12

305-12Y2-003-012

CAP.BLEEDER

1.00

13

305-12Y2-003-013

SPRING.PAD

4.00

14

305-12Y2-003-016

FLANGE BOLT

3.00

15

305-12Y2-003-00A

CYLINDER ASSY.LOWER

160.00

Enquiry

F7 REAR BRAKE ASSY (XTM 200 & XTM-R 200)

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

305-20Y1-005

REAR BRAKE ASSY

260.00

2

305-20Y1-006

CYLINDER ASSY.UPPER

180.00

3

305-20Y1-007

BRACKET,REAR BRAKE

0.00

4

305-12Y2-008

CALIPER ASSY.REAR

160.00

5

700-5787-06025-AG

FLANGE BOLT M6X25

0.00

6

700-6177-06-AG

NUT M6

0.00

7

402-12Y2-006

COVER(REAR BRAKE ASSY)

0.00

8

305-20Y1-009-001

PIN

0.00

9

305-20Y1-009-002

COTTER PIN

0.00

10

305-20Y1-009-003

ROCKER

0.00

11

305-20Y1-009-004

SHAFT

0.00

12

305-20Y1-010

HOSE,REAR BRAKE

30.00

13

305-20Y1-010-001

WASHER

0.00

14

305-20Y1-010-002

FLANGE BOLT

0.00

15

305-20Y1-011

PAD SET,REAR

35.00

16

305-20Y1-009-005

NUT M6

0.00

17

305-20Y1-009-006

JOINT

0.00

18

305-20Y1-006-001

SWITCH REAR BRAKE

20.00

Enquiry

F8 ABSORBER ASSY , FRONT (XTM 200 & XTM-R 200)

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

213-12Y2-001R

RIGHT FRONT SHOCK

800.00

2

213-12Y2-001L

LEFT FRONT SHOCK

800.00

3

215-20Y1-001

STEERING STEM.UPPER

90.00

4

216-12Y2-001

STEERING STEM.LOWER

299.00

5

401-12Y2-001

CLIP(LEFT)

28.00

6

401-12Y2-002

CLIP(RIGHT)

28.00

7

217-12Y2-001-001

BEARING

50.00

8

217-12Y2-001-002

DUSTPROOF COVER

15.00

9

217-12Y2-001-003

LOCK NUT

36.00

10

217-12Y2-001-004

WASHER

5.00

11

217-12Y2-001-005

CAP NUT

25.00

12

312-20Y1-001

UPPER FIXED BASE

34.00

13

700-5787-10045-AG

FLANGE BOLT M10X45

4.00

14

700-5787-08035-AG

FLANGE BOLT M8X35

3.00

15

700-5787-08045-AG

FLANGE BOLT M8X45

3.00

16

202-12Y2-001

BRACKET,BRAKE HOSE

0.00

17

202-12Y2-002

CLAMP A

0.00

18

212-12Y2-001

WASHER

0.00

19

700-6177-05-AG

FLANGE NUT M5

0.00

20

700-823-05025-BZ

PAN HEAD SCREW

0.00

21

700-5787-06012-AG

FLANGE BOLT M6X12

0.00

22

700-97.1-06-AG

WASHER

0.00

23

202-12Y2-003

CLAMP B

0.00

Enquiry

F9 INNER FENDER (XTM 200 & XTM-R 200)

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

402-20Y1-001

INNER FENDER

49.00

2

502-12Y2-002

RUBBER SLIDE

15.00

3

700-5787-06016-AG

FLANGE BOLT M6X16

0.00

4

700-6177-06-AG

FLANGE NUT M6

0.00

5

700-97.2-06-AG

WASHER

0.00

6

212-CPLM-06-AG

CLIP NUT,M6

0.00

7

212-20Y1-003

KEEP PLATE,RUBBER

0.00

Enquiry

F10 AIR CLEANER (XTM 200 & XTM-R 200)

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

103-20Y1-001

AIR CLEANER ASSY

120.00

2

103-20Y1-001-001

CASE

0.00

3

103-20Y1-001-002

FILTER

30.00

4

103-20Y1-001-003

COVER,CASE

0.00

5

103-20Y1-001-005

SELF-TAPPING SCREW

0.00

6

103-20Y1-001-006

CLIP

5.00

7

103-20Y1-001-007

LITTLE PAN HEAD SCREW

0.00

8

212-CPLM-06-AG

CLIP NUT,M6

0.00

9

700-818-06016-AG

PAN HEAD SCREW M6X12

0.00

10

F10-010

CONNECTING TUBE

0.00

11

F10-011

MESH FILTER

0.00

Enquiry

F11 FRAME (XTM 200 & XTM-R 200)

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

201-20Y1-001

FRAME

1200.00

2

217-12Y2-001-006

BOWL,LOWER

20.00

3

217-12Y2-001-007

BOWL,UPPER

20.00

4

502-12Y2-003

RUBBER RING

0.00

5

700-6187.2-08-AG

FLANGE NUT M8

0.00

6

700-5787-08040-WZ

FLANGE BOLT M8X40

0.00

7

700-5787-08045-WZ

FLANGE BOLT M8X45

0.00

8

700-5787-08100-WZ

FLANGE BOLT M8X100

0.00

9

212-CPLM-06-AG

CLIP NUT,M6

0.00

10

209-20Y1-002

ENGINE LIFTING BRACKET

38.00

11

700-5787-08016-WZ

BOLT

0.00

12

HCT20X8X16X19

BUFFER SET

0.00

Enquiry

F12 BRACKET, ENGINE (XTM 200 & XTM-R 200)

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

209-20Y1-001

BRACKET,ENGINE

200.00

2

700-5787-08075-WZ

FLANGE BOLT M8X75

0.00

3

700-6187-08-WZ

NUT M8

0.00

4

700-5787-08105

FLANGE BOLT M8X105

0.00

5

209-20Y1-003

ENGINE PLATE

150.00

6

700-2672-08012-WZ

SCREW

0.00

Enquiry

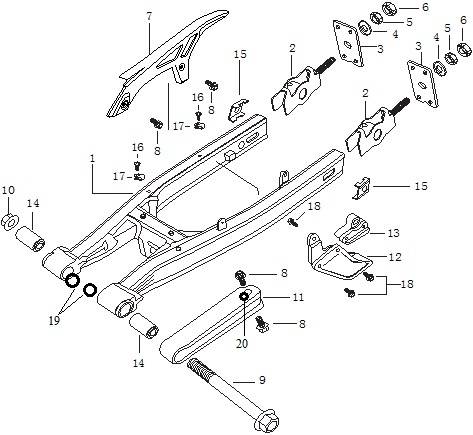

F13 REAR FORK (XTM 200 & XTM-R 200)

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

206-20Y1-001

REAR FORK

400.00

2

221-20Y1-001-001

CHAIN,ADJUSTER

30.00

3

221-20Y1-001-002

WASHER 8X16

0.00

4

221-20Y1-001-003

WASHER

0.00

5

221-20Y1-001-004

NUT M8 S=12

0.00

6

221-20Y1-001-005

NUT M8 S=14

0.00

7

402-12Y2-002

CHAIN CASE

28.00

8

700-5787-06012-AG

FLANGE BOLT M6X12

0.00

9

212-Z14240-AG

SHAFT.PIVOT

25.00

10

700-6187-14-AG

FLANGE NUT M14X1.25

2.00

11

502-12Y2-004

RUBBER.CHAIN TOUCH

30.00

12

502-12Y2-005-N

CHAIN PROTECTOR(NEW)

40.00

13

502-12Y2-005-O

CHAIN PROTECTOR(OLD MODEL)

30.00

14

206-20Y1-002

BUFFER CIRCLE(SWING ARM)

20.00

15

221-12Y2-001-006

PLATE

0.00

16

700-823-05008-AG

PAN HEAD SCREW M5X8

0.00

17

212-12Y2-006

PLATE

0.00

18

700-5787-08012-AG

FLANGE BOLT M8X12

0.00

19

206-20Y1-019

OIL SEAL 20X27X5(SWING ARM)

8.00

20

206-20Y1-020

BEARING(SWING ARM)

10.00

Enquiry

F14 REAR ROCKER (XTM 200 & XTM-R 200)

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

206-12Y2-002

ROCKER A

128.00

2

700-ZC-6000EZ

AXLETREE 6000EZ

8.00

3

212-YF-203205

OIL SEAL 20X32X6(ROCKER B)

8.00

4

700-6177-12-AG

FLANGE NUT M12X1.25

2.00

5

212-12Y2-018

BUSHING

25.00

6

700-5787-12105-WZ

FLANGE BOLT M12X105

10.00

7

206-12Y2-003

ROCKER B

118.00

8

700-ZC-HK2020

AXLETREE HK2020

10.00

9

212-ZCGJ-001

ARTHROSIS AXLETREE

30.00

10

700-893-20-WZ

CIRCLIP FOR SHAFT

2.00

11

700-5787-12095-WZ

FLANGE BOLT M12X95

10.00

12

212-YF-12Y2-002

RUBBER WASHER

0.00

13

212-12Y2-019

COLLAR

0.00

14

700-5787-12082-WZ

FLANGE BOLT M12X82

0.00

15

212-YF-202605

OIL SEAL 20X26X5(ROCKER A)

6.00

Enquiry

F15 HANDLEBAR, REAR VIEW MIRROR (XTM200 & XTM-R200)

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

207-20Y1-002

HANDLE BAR

95.00

2

405-12Y2-001L

REAR VIEW MIRROR SET.(LH)

30.00

3

405-12Y2-001R

REAR VIEW MIRROR SET.(RH)

30.00

4

405-12Y2-001L-001

REAR VIEW MIRROR.LH

0.00

5

405-12Y2-001R-001

REAR VIEW MIRROR.RH

0.00

6

405-12Y2-001L-002

DUST PROOF RUBBER

0.00

7

405-12Y2-001L-003

NUT M10

0.00

8

504-20Y1-001-1

GRIP COVER(SET)

60.00

Enquiry

F16 FUEL TANK (XTM 200)

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

409-12Y3-001I

FUEL TANK

350.00

2

700-823-06016-AG

PAN HEAD SCREW M6X16

0.00

3

502-12Y2-007

O-RING(FUEL TANK)

0.00

4

402-12Y2-003

PLATE,OIL TANK

18.00

5

700-95-05-AG

WASHER

0.00

6

700-823-05010-AG

LITTLE PAN HEAD SCREW M5X10

0.00

7

502-12Y2-009

RUBBER WASHER(FUEL TANK OUTLET)

0.00

8

409-12Y2-002

FUEL TANK OUTLET

0.00

9

502-12Y2-008

WASHER(FUEL TANK OUTLET)

0.00

10

700-5787-06016-AG

FLANGE BOLT M6X16

0.00

11

202-12Y2-004

SET HOLDER

0.00

Enquiry

F17 FRONT REAR FOOTREST (XTM 200 & XTM-R 200)

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

220-12Y2-001L

FR.L.FOOTREST ASSY

50.00

2

220-12Y2-001R

FR.R.FOOTREST ASSY

50.00

3

220-12Y2-002L

RR.L.FOOTREST ASSY

60.00

4

220-12Y2-002R

RR.R.FOOTREST ASSY

60.00

5

220-12Y2-002R-001

RR.R.FOOTREST

25.00

6

220-12Y2-002L-001

RR.L.FOOTREST

25.00

7

220-12Y2-002L-002

PIN

0.00

8

220-12Y2-002L-003

WASHER

0.00

9

220-12Y2-002L-004

SPLIT PIN

0.00

10

700-70.1-08025-AG

HEX.SOCKET BOLT

0.00

11

220-12Y2-002R-005

BAR.RR.R.FOOTREST

35.00

12

220-12Y2-002L-005

BAR,RR.L.FOOTREST

35.00

13

220-12Y2-001L-001

FR.L.FOOTREST

0.00

14

220-12Y2-001R-001

FR.R.FOOTREST

0.00

15

220-12Y2-001L-002

SPRING 1

0.00

16

220-12Y2-001L-003

COTTER PIN

0.00

17

220-12Y2-001L-004

WASHER

0.00

18

220-12Y2-001L-005

PIN

0.00

19

700-6177-08-AG

FLANGE NUT M8

0.00

20

220-12Y2-002L-005

SPRING 2

0.00

21

220-12Y2-002L-006

STEEL BALL

0.00

22

502-12Y2-020L

FR.L.FOOTREST,RUBBER

0.00

23

502-12Y2-020R

FR.R.FOOTREST,RUBBER

0.00

Enquiry

F18 SIDE STAND, LEVERS (XTM 200 & XTM-R 200)

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

205-20Y1-001

SIDE STAND

40.00

2

203-20Y1-001

SPRING,SIDE STAND

10.00

3

212-20Y1-008

SIDE STAND BOLT

0.00

4

212-12Y2-002

SHOULDER BOLT

8.00

5

203-20Y1-002

SPRING,REAR BRAKE

10.00

6

212-12Y2-003

FLANGE NUT M6

1.00

7

700-5787-06020-WZ

FLANGE BOLT M6X20

0.00

8

211-12Y3-001

SHIFT LEVER

50.00

9

210-20Y1-001

REAR BRAKE PEDAL

50.00

10

120-20Y1-001-003

LEVER KICK

65.00

11

120-20Y1-001-002

LOCK WASHER

0.00

12

120-20Y1-001

LEVER KICK,RUBBER

0.00

13

120-20Y1-001-004

BALL

0.00

14

120-20Y1-001-005

SPRING

0.00

15

120-20Y1-001-006

SOCKET,KICK STARTER

0.00

16

120-20Y1-001-007

BOLT

0.00

Enquiry

F19 SHEERING STEM SHELD FRONT FENDER (XTM 200)

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

403-20Y1-001R

SHEERING STEM(RIGHT)

58.00

2

403-20Y1-001L

SHEERING STEM(LEFT)

58.00

3

700-823-05008-AG

BOLT M5X8

0.00

4

403-20Y1-002II

FRONT FENDER

88.00

5

700-5787-06012-AG

FLANGE BOLT M6X12

0.00

6

700-95-06-WZ

RUBBER WASHER

0.00

7

212-12Y2-035

FRONT RUBBER BUSHING

0.00

Enquiry

F20 FRONT WHEEL ASSY (XTM 200 & XTM-R 200)

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

212-12Y2-009

FRONT AXLE

30.00

2

304-12Y2-001

SPEEDOMETER GEAR BOX

80.00

3

501-11070-17-1

TIRE.FRONT 110/70-17

180.00

4

301-05Y2-001FRR

FRONT HUB(XTM)

490.00

5

301-05Y2-002

TUBELESS HEAD

0.00

6

309-05Y2-001

DISC.FRONT BRAKE

99.00

7

212-LSDS-8X25-WZ

BOLT

3.00

8

212-12Y2-010

L.BUSH.FRONT WHEEL

10.00

9

6202RS

BEARING

23.00

10

212-12Y2-036

BUSHING

0.00

11

F20-011

OIL SEAL 25x35x5

0.00

Enquiry

F21 REAR WHEEL ASSY (XTM200 & XTM-R200)

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

700-6187-14-WZ

NUT M14X1.25

2.00

2

212-05Y2-013

R.BUSH,R.WHEEL

8.00

3

212-LSDS-8X25-WZ

BOLT(DISC.BRAKE)

3.00

4

304-05Y2-002

COUNTER

0.00

5

309-05Y2-002

DISC.REAR BRAKE

99.00

6

304-05Y2-003

SENSOR

0.00

7

501-13070-17-1

TIRE.REAR 130/70-17

200.00

8

301-05Y2-001RR

REAR HUB

490.00

9

301-05Y2-002

TUBELESS HEAD

3.00

10

228-05Y2-001

REAR SPROCKET

60.00

11

700-6187-14-WZ

NUT M14X1.25

2.00

12

228-20Y1-002

BOLT(REAR SPROCKET)

5.00

13

700-6187-08-WZ

SELF-LOCKED MUT M8

2.00

14

212-12Y2-013

L.BUSH,R.WHEEL

8.00

15

212-Z14265-WZ

REAR AXLE

25.00

16

222-20Y1-001

CHAIN(O-RING)

180.00

17

6302RS

BEARING 6302

25.00

18

212-12Y2-037

BUSHING(REAR HUB)

0.00

19

OIL SEAL 27X47X7

OIL SEAL 27X47X7

8.00

20

OIL SEAL 28X42X7

OIL SEAL 28X42X7

8.00

Enquiry

F22 SEAT ASSY (XTM 200)

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

408-12Y2-001

SEAT(XTM)

168.00

2

408-12Y2-001-001

SEAT LOCK PIN

0.00

3

408-12Y2-001-002

NUT M6

0.00

4

408-12Y2-001-003

WASHER

0.00

5

202-12Y2-006

SET,SEAT LOCK

0.00

6

700-819-06030-WZ

CROSS RECESSED

0.00

Enquiry

F22-A SEAT ASSY (XTM-R 200)

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

408-12Y3-001

SEAT ASSY(XTM-R)

168.00

2

408-12Y3-001-001

SEAT

0.00

3

408-12Y2-001-002

SEAT LOCK PIN

0.00

4

408-12Y3-001-003

CUSHION

0.00

5

408-12Y2-001-004

NUT M6

0.00

6

202-12Y2-006

SET,SEAT LOCK

0.00

7

700-819-06030-WZ

CROSS RECESSED

0.00

Enquiry

F23 FUEL COVER SIDE COVER (XTM 200)

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

403-12Y2-003

FUEL TANK FRONT COVER

50.00

2

403-12Y2-004R

FRONT COVER RH

80.00

3

403-12Y2-004L

FRONT COVER LH

80.00

4

700-9074-05012-AG

LITTLE PAN HEAD SCREW

0.00

5

403-12Y2-005

FUEL TANK LOCK FRONT COVER

10.00

6

700-70.2-06012-WC

HEX.SOCKET BOLT

0.00

7

700-95-06-WZ

WASHER

0.00

Enquiry

F23-A FUEL COVER SIDE COVER (XTM-R 200)

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

403-12Y3-003-B

FUEL TANK COVER(XTM-R)

50.00

2

700-70.2-06012-WC

HEX-SOCKET BOLT

0.00

3

700-95-06-WZ

WASHER

0.00

4

403-12Y2-005

FUEL TANK LOCK FRONT COVER

10.00

5

403-12Y3-004L

COVER L.

80.00

6

403-12Y3-004R

COVER R.

80.00

7

403-12Y3-005L

LITTLE COVER L.

20.00

8

403-12Y3-005R

LITTLE COVER R

20.00

Enquiry

F24 HEAD COVER (XTM 200)

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

403-20Y1-006I-W

HEAD COVER(XTM)

70.00

2

502-12Y2-010L

L.BRACKET,RUBBER

0.00

3

502-12Y2-010R

R.BRACKET,RUBBER

0.00

4

700-823-06012-AG

PAN HEAD SCREW M6X16

0.00

5

700-6177-06-AG

NUT M6

0.00

6

402-20Y1-004I

GRID(XTM)

30.00

7

700-823-05010-AG

FLANGE BOLT M5X10

0.00

8

212-CPLM-06-AG

CLIP NUT,M6

0.00

9

700-818-06020-AG

PAN HEAD SCREW M6X20

0.00

10

700-95-30-WZ

RUBBER

0.00

11

700-95-31-WZ

RUBBER

0.00

12

502-12Y2-010-N

BRACKET,HEAD COVER

39.00

13

403-20Y1-006I-B

HEAD COVER(BLACK)

70.00

Enquiry

F24-A-HEAD COVER (XTM-R 200)

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

403-20Y1-006II-B

HEAD COVER

70.00

2

502-12Y2-010L

L.BRACKET,RUBBER

0.00

3

502-12Y2-010R

R.BRACKET,RUBBER

0.00

4

700-823-06016-AG

PAN HEAD SCREW M6X16

0.00

5

700-6177-06-AG

NUT M6

0.00

6

402-20Y1-004II

GRID(XTM-R)

30.00

7

700-823-05010-AG

FLANGE BOLT M5X10

0.00

8

212-CPLM-06-AG

CLIP NUT,M6

0.00

9

700-818-06020-AG

PAN HEAD SCREW M6X20

0.00

10

700-95-30-WZ

RUBBER

0.00

11

700-95-31-WZ

RUBBER

0.00

12

502-12Y2-010-N

BRACKET,HEAD COVER

39.00

Enquiry

F25 SIDE COVER, REAR FENDER, REAR COVER (XTM 200 & XTM-R 200)

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

403-12Y2-007R-B

R.SIDE COVER(BLACK)

80.00

2

403-12Y2-007L-B

L.SIDE COVER(BLACK)

80.00

3

700-95-06-WZ

WASHER

0.00

4

700-70.2-06012-WC

BIG PAN HEAD SCREW M6X12

0.00

5

212-CMLM-06-AG

CLIP,NUT M6

0.00

6

700-845-42016-AG

SELF-TAPPING SCREW ST4.2X16

0.00

7

403-12Y2-008-B

REAR COVER(BLACK)

60.00

8

402-12Y2-005

REAR COVER(MUG GUARD)

79.00

9

610-12Y2-002

REAR REFLECTOR ASSY

10.00

10

610-12Y2-002-002

HEX.NUT M5

0.00

11

610-12Y2-002-003

WASHER

0.00

12

610-12Y2-002-001

REAR REFLECTOR

5.00

13

700-5787-06020-AG

FLANGE BOLT M6X20

0.00

14

700-96-06-WZ

WASHER

0.00

15

700-6177-06-AG

FLANGE NUT M6

0.00

16

700-823-05012-AG

BOLT M5X12

0.00

17

403-12Y2-007R-W

R.SIDE COVER(WHITE)

80.00

18

403-12Y2-007L-W

L.SIDE COVER(WHITE)

80.00

19

403-12Y2-008-W

REAR COVER(WHITE)

60.00

Enquiry

F26 LOCK SET (XTM 200 & XTM-R 200)

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

608-12Y2-001-001

MAIN SWITCH ASSY

0.00

2

608-12Y2-001-002

SEAT LOCK

0.00

3

608-12Y2-001-003

FUEL TANK LOCK ASSY

0.00

4

608-12Y2-001-004

KEYS

0.00

5

503-12Y2-004

SEAT LOCK LINE

0.00

6

212-12Y2-014

DEFEND BOLT

0.00

7

700-5787-06020-AG

FLANGE BOLT M6X20

0.00

8

608-12Y2-001

LOCK ASSY

96.00

Enquiry

F27 HEAD LAMP (XTM 200)

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

602-12Y2-001I

HEAD LIGHT ASSY

99.00

2

602-12Y2-001I-001

HEAD LIGHT HOUSE

0.00

3

602-12Y2-001-002

BULB 12V35/35W

10.00

4

602-12Y2-001-004

CLIP

0.00

5

602-12Y2-001-005

CLIP

0.00

6

602-12Y2-001-006

SELF-TAPPING SCREW

0.00

7

602-12Y2-001-007

SELF-TAPPING SCREW

0.00

8

602-12Y2-001-008

BULB 12V5W

5.00

9

602-12Y2-001-009

WASHER

0.00

Enquiry

F27-A-HEAD LAMP (XTM-R 200)

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

602-20Y1-001

HEAD LIGHT ASSY

99.00

2

602-20Y1-001-001

HEAD LIGHT DECORATION

0.00

3

602-20Y1-001-002

HEAD LIGHT LENS

0.00

4

602-20Y1-001-003

HEAD LIGHT HOUSE

0.00

5

602-20Y1-001-004

BULB 12V35/35W

10.00

6

602-20Y1-001-005

CLIP

0.00

7

602-20Y1-001-006

CLIP

0.00

8

602-20Y1-001-007

SELF-TAPPING SCREW

0.00

9

602-20Y1-001-008

SELF-TAPPING SCREW

0.00

10

602-20Y1-001-009

BULB 12V/5W

5.00

11

602-20Y1-001-010

WASHER

0.00

Enquiry

F28 REAR LAMP (XTM 200 & XTM-R 200)

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

602-12Y2-002

REAR LAMP

110.00

2

602-12Y2-003

LICENSE PLATE LAMP

0.00

3

602-12Y2-002-001

REAR LAMP REFLECTOR

0.00

4

602-12Y2-002-002

REFLECTOR

0.00

5

602-12Y2-002-003

LED ASSY

0.00

6

700-845-42012-AG

SELF-TAPPING SCREW ST4.2X12

0.00

7

602-12Y2-003-001

BULB

0.00

8

602-12Y2-003-002

HARNESS

0.00

9

602-12Y2-003-003

LAMP COVER(UP)

5.00

10

602-12Y2-003-004

LAMP COVER(DOWN)

5.00

11

700-845-42016-AG

SELF-TAPPING SCREW ST4.2X16

0.00

12

602-12Y2-002-004

REAR LAMP COVER

18.00

13

212-12Y2-015

PLATE

0.00

Enquiry

F29 TURNING LAMP (XTM 200 & XTM-R 200)

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

602-12Y2-004

F.L.TURNING LAMP

45.00

2

602-12Y2-005

F.R.TURNING LAMP

45.00

3

602-12Y2-006

R.L.TURNING LAMP

45.00

4

602-12Y2-007

R.R. TURNING LAMP

45.00

5

700-6170-10-WZ

NUT M10

0.00

6

202-20Y1-007

BRACKET,TURNING LAMP

0.00

7

212-12Y2-015

PLATE

0.00

8

700-93-10

WASHER SPRING

0.00

9

700-96-10X20

WASHER

0.00

10

700-845-42012-AG

SELF-TAPPING SCREW ST4.2X12

0.00

Enquiry

F30 SPEEDOMETER (XTM 200 & XTM-R 200)

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

601-20Y1-001

SPEEDOMETER

449.00

2

212-20Y1-001

SCREW

0.00

3

304-20Y1-001

SPEEDOMETER GEAR BOX

90.00

4

304-20Y1-001-001

CASE

20.00

5

304-20Y1-001-002

SPEEDOMETER GEAR

30.00

6

212-20Y1-016

BRACKET,CLOCK

29.00

7

700-5787-06025-AG

FLANGE BOLT M6X25

0.00

8

601-20Y1-002

BUTTON

10.00

Enquiry

F31 WIRING (XTM 200 & XTM-R 200)

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

603-20Y1-001

MAIN HARNESS

290.00

2

107-200-004

IGNITION COIL

79.00

3

108-200-001

C.D.I. UNIT

195.00

4

606-125-003

STARTER RELAY

49.00

5

605-002

FLASHER

25.00

6

109-004

REGULATOR/RECTIFIER

99.00

7

604-125

HORN(E-MARK)

24.00

8

700-5787-06020-AG

FLANGE BOLT M6X20

0.00

9

700-6177-06-AG

FLANGE NUT M6

0.00

10

700-5787-06016-AG

FLANGE BOLT M6X16

0.00

11

700-5787-06020-AG

FLANGE BOLT M6X20

0.00

Enquiry

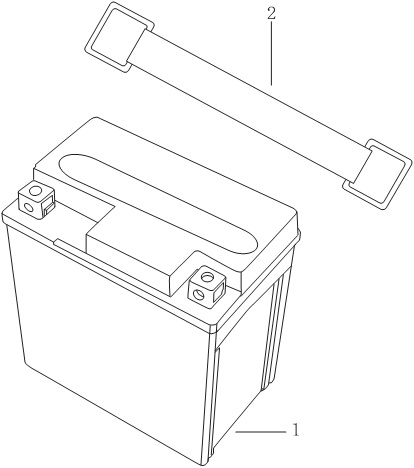

F32 BATTERY (XTM 200 & XTM-R 200)

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

607-12Y2-001

BATTERY

130.00

2

502-12Y2-012

RUBBER

0.00

Enquiry

F33 TOOL KIT (XTM 200 & XTM-R 200)

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

801-001-000

TOOL KIT

0.00

2

801-001-001

TOOL BAG

0.00

3

801-001-10X12

DOUBLE-ENDED WRENCH 10X12

0.00

4

801-001-14X17

DUOBLE-ENDED WRENCH 14X17

0.00

5

801-001-002

SPARK PLUG BRACKET

0.00

6

801-001-003

SCREW DRIVER

0.00

7

801-001-004

HANDLE

0.00

Enquiry

F34 OIL COOLER (XTM 200 & XTM-R 200)

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

121-20Y1-001

OIL COOLER

160.00

2

121-20Y1-002

BOLT 1

0.00

3

121-20Y1-003

WASHER 1

1.00

4

121-20Y1-004

OIL PIPE A

48.00

5

121-20Y1-005

OIL PIPE B

38.00

6

121-20Y1-006

BOLT II

0.00

7

121-20Y1-007

WASHER II

1.00

8

700-5787-06020-AG

FLANGE BOLT M6X20

0.00

9

212-20Y1-001

COLLAR

0.00

10

502-20Y1-001

CUSHION

0.00

11

202-20Y1-001

BRACKET,OIL COOLER

25.00

12

700-6177-06-AG

FLANGE NUT M6

0.00

Enquiry

F35 THROTTLE CABLE, CHOKE VALVE CABLE (XTM 200 & XTM-R 200)

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

503-20Y1-001

THROTTLE CABLE I

20.00

2

503-20Y1-002

THROTTLE II

20.00

3

503-20Y1-003

CHOKE VALVE CABLE

18.00

Enquiry

F36 STICKER (XTM 200)

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

XTMF36001

STICKER,1

15.00

2

XTMF36002R

STICKER,2

8.00

3

XTMF36003L

STICKER,3

8.00

4

XTMF36004L

STICKER,4

8.00

5

XTMF36005R

STICKER,5

8.00

6

XTMF36006

STICKER,6

15.00

7

XTMF36007R

STICKER,7

15.00

8

XTMF36008L

STICKER,8

15.00

9

XTMF36009R

STICKER,9

5.00

10

XTMF36010L

STICKER,10

5.00

11

XTMF36011R

STICKER,11

15.00

12

XTMF36012L

STICKER,12

15.00

13

XTMF36013R

STICKER,13

15.00

14

XTMF36014L

STICKER,14

15.00

15

XTMF36015R

STICKER,15

15.00

16

XTMF36016L

STICKER,16

15.00

17

XTMF36017R

STICKER,17

8.00

18

XTMF36018L

STICKER,18

8.00

19

XTMF36019R

STICKER,19

10.00

20

XTMF36020L

STICKER,20

10.00

21

XTMF36021L

STICKER,21

15.00

22

XTMF36022R

STICKER,22

15.00

23

XTMF36023R

STICKER,23

15.00

24

XTMF36024L

STICKER,24

15.00

25

XTMF36001F

FULL SET STICKER(XTM)

250.00

Enquiry

F36-A-STICKER (XTM-R 200)

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

XTMRS01

STICKER,1

20.00

2

STMRS02

STICKER,2

5.00

3

STMRS03

STICKER,3

5.00

4

STMRS04

STICKER,4

15.00

5

STMRS05

STICKER,5

15.00

6

STMRS06

STICKER,6

10.00

7

STMRS07

STICKER,7

10.00

8

STMRS08

STICKER,8

20.00

9

STMRS09

STICKER,9

15.00

10

STMRS10

STICKER,10

15.00

11

STMRS11

STICKER,11

20.00

12

STMRS12

STICKER,12

20.00

13

STMRS13

STICKER,13

20.00

14

STMRS14

STICKER,14

20.00

15

STMRS15

STICKER,15

20.00

16

STMRS16

STICKER,16

20.00

17

STMRS17

STICKER,17

15.00

18

STMRS18

STICKER,18

15.00

19

XTMRSF

FULL SET STICKER(XTM-R)

250.00

Enquiry
