E-01 CYLINDER HEAD

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

1200A-BZ2-0000

HEAD SUB ASS'Y,CYLINDER

0.00

2

12000-BZ2-0000

HEAD SET,CYLINDER

2900.00

3

1220A-BZ1-0000

HEAD ASS'Y, CYLINDER

0.00

4

12200-BZ1-0000

HEAD COMP., CYLINDER

0.00

5

12209-BA6-0050

SEAL, VALVE STEM

10.00

6

12211-BA8-0010

HOLDER, FR.CAM SHAFT

0.00

7

12251-SZ2-0000

GASKET, CYLINDER HEAD

50.00

8

12301-BZ1-0010

COVER, CYLINDER HEAD

0.00

9

12311-BA8-0010

HOLDER, RR.CAM SHAFT

0.00

10

12313-BA8-0010

GASKET, CYLINDER HEAD COVER

34.00

11

12410-BA8-0000-M1

SENSOR, ENGINE TEMPERATURE

110.00

12

14711-BZ1-0000

VALVE, INLET

59.00

13

14721-BZ1-0010

VALVE, EXHAUST

69.00

14

14731-BA8-0000-M1

LIFT, VALVE

60.00

15

14751-BA8-0000

SPRING, VALVE

10.00

16

14771-BA8-0000

RETAINER, VALVE SPRING

10.00

17

14775-BA1-0010

SEAT, VALVE SPRING

8.00

18

14781-BA6-0000

COTTER, VALVE

2.00

19

1490A-BA8-0000

SHIM ASS'Y( For a/s parts )

230.00

20

19103-BZ2-0000

CAP, THERMOSTAT

30.00

21

19400-BA8-0000-M1

THERMOSTAT ASS'Y

80.00

22

9000A-BA8-0000

BOLT ASS'Y, SPECIAL, 6x24

9.00

23

90009-BA7-9000

BOLT, SOCKET, 10mm

0.00

24

90304-BA8-0000

NUT, SPECIAL, 10mm

0.00

25

90412-BA6-0000

WASHER, THRUST, 10mm

0.00

26

90443-BA6-0000

WASHER, SEALING, 10mm

0.00

27

S2700-06035-3E

BOLT, STUD, 6x35

0.00

28

S4301-08120

PIN, DOWEL, 8x12

2.00

29

S5701-06035-00

BOLT, FLANGE, 6x35

0.00

30

S5701-06040-00

BOLT, FLANGE, 6x40

0.00

31

S6001-06018-00

BOLT, FLANGE, SH.6x18

0.00

32

S6001-06040-00

BOLT, FLANGE, SH.6x40

0.00

33

S8059-59936-00

PLUG, SPARK(CR9EH-9)

0.00

Enquiry

E-02 CYLINDER

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

12100-BZ1-0010

CYLINDER COMP.

650.00

2

12191-SAB-0000

GASKET, CYLINDER

15.00

3

19354-BA8-0010

CLIP A25, TUBE

0.00

4

19504-BZ1-0000

HOSE, WATER INLET

40.00

5

19512-BZ1-0000

JOINT B, WATER HOSE

30.00

6

91312-BA8-0000

O-RING, 17x3

5.00

7

S4301-12160

PIN, DOWEL, 12x16

2.00

8

S6001-06014-00

BOLT, FLANGE, SH.6x14

0.00

9

S6001-06035-00

BOLT, FLANGE, SH.6x35

0.00

Enquiry

E-03 CAM SHAFT / VALVE

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

14100-SZ2-0000

SHAFT COMP., INLET CAM

320.00

2

14200-BZ1-0000

SHAFT COMP., EXHAUST CAM

320.00

Enquiry

E-04 CAM CHAIN / TENSIONER

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

14401-BZ1-0000

CHAIN, CAM

130.00

2

14500-SZ2-0000

TENSIONER, CAM CHAIN

45.00

3

14520-BA1-0000

LIFTER ASS'Y, TENSIONER

50.00

4

14523-BA7-0000-EU

GASKET, TENSIONER LIFTER

5.00

5

14531-BA8-0000

PIVOT, CAM CHAIN TENSIONER

20.00

6

14550-BZ1-0010

GUIDE, CAM CHAIN

40.00

7

14560-BA8-0000

GUIDE B, CAM CHAIN

18.00

8

90005-BA7-9000

SCREW, PAN, 6x6

0.00

9

90091-BA7-0000

BOLT, FLANGE, 6x16

0.00

10

91306-BA6-6900

O-RING, 1.5x9.5

1.00

11

S5701-06016-00

BOLT, FLANGE, 6x16

0.00

Enquiry

E-05 RIGHT CRANK CASE COVER

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

11330-BZ1-0000

COVER COMP., RH.CRANK CASE

250.00

2

11332-BA8-0010

COVER, RH.CRANK CASE COVER

15.00

3

11333-BZ1-0000

COVER COMP., OIL FILTER

70.00

4

11335-BA8-0000

SEAL, OIL FILTER

13.00

5

11393-BA8-RZ00

GASKET, RH.CRANK CASE COVER

28.00

6

15132-BZ1-0000

SHAFT, OIL PUMP

10.00

7

15133-BA6-9600

RING, SET

1.00

8

1533A-BZ1-0000

ROTOR ASS'Y, OIL PUMP

16.00

9

15331-BZ1-0000

ROTOR, INNER OIL PUMP

0.00

10

15332-BZ1-0000

ROTOR, OUTER OIL PUMP

0.00

11

15412-BA8-0010

ELEMENT, OIL FILTER

25.00

12

15414-BA6-9600

SPRING, OIL FILTER

5.00

13

15415-BA6-9610

VALVE, RELIEF

3.00

14

15416-BA8-0000

SPRING, RELIEF VALVE

3.00

15

1565A-BA8-0000

GAUGE ASS'Y, OIL LEVEL

20.00

16

15650-BA8-0000

GAUGE, OIL LEVEL

0.00

17

22810-BA8-0000

LEVER COMP., CLUTCH

26.00

18

22815-BA6-7000

SPRING, CLUTCH LEVER

2.00

19

22838-BZ2-0000

HOLDER, CLUTCH WIRE

0.00

20

90009-BA8-0000

BOLT, SOCKET, 10mm

5.00

21

90466-BA6-9600

WASHER, 14mm

5.00

22

91203-BA6-0030

SEAL, OIL, 14x22x5

15.00

23

91303-BA6-1000

O-RING, 9mm

1.00

24

91307-CB2-0010

O-RING, 18x3

0.00

25

S3891-05010-17

SCREW, WASHER, 5x10

0.00

26

S4301-08120

PIN, DOWEL, 8x12

2.00

27

S4301-10160

PIN, DOWEL, 10x16

0.00

28

S6001-06022-07

BOLT, FLANGE, SH.6x22

0.00

29

S6001-06028-07

BOLT, FLANGE, SH.6x28

0.00

30

S6001-06040-07

BOLT, FLANGE, SH.6x40

0.00

31

S6001-06050-07

BOLT, FLANGE, SH.6x50

0.00

32

S6001-06095-07

BOLT, FLANGE, SH.6x95

0.00

Enquiry

E-06 WATER PUMP

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

19200-BZ1-0000

PUMP ASS'Y, WATER

330.00

2

19210-BZ1-0000

BADY, WATER PUMP

50.00

3

19215-BZ1-0000

IMPELLER, WATER PUMP

20.00

4

19217-BA8-0000

SEAL, MECHANICAL

40.00

5

19220-BZ1-0000

COVER COMP., WATER PUMP

45.00

6

19226-BA8-0000

SEAL, WATER PUMP COVER

7.00

7

19241-BZ1-0000

SHAFT, WATER PUMP

38.00

8

19242-BZ1-0000

GEAR, WATER PUMP DRIVEN

25.00

9

19511-BZ1-0000

JOINT A, WATER HOSE

20.00

10

19521-BZ2-0000

TUBE, WATER PUMP

15.00

11

90423-BA8-0000

WASHER, 7.5x13x1.2

0.00

12

90461-BA6-1000

WASHER, SEALING 12mm

0.00

13

91208-BA6-6710-M1

SEAL, OIL, 11.6x24x10

10.00

14

91309-BA8-0000

O-RING, 30.5x3.0

2.00

15

91312-BA8-0000

O-RING, 17x3

5.00

16

S4301-08120

PIN, DOWEL, 8x12

2.00

17

S4510-17000

CIR CLIP, EXTERNAL, 17mm

2.00

18

S5002-41000-04

CLAMP D10, TUBE

0.00

19

S5701-06010-00

BOLT, FLANGE, 6x10

0.00

20

S6001-06012-00

BOLT, FLANGE, SH.6x12

0.00

21

S6001-06035-07

BOLT, FLANGE, SH.6x35

0.00

22

S6001-06055-07

BOLT, FLANGE, SH.6x55

0.00

23

S6100-60010-00

BEARING, RADIAL BALL, 6001

13.00

24

S6220-30233-00

ROLLER

2.00

Enquiry

E-07 CLUTCH

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

19243-BA8-0000

GEAR, WATER PUMP DRIVE

47.00

2

2210A-BZ1-0000

CLUTCH ASS'Y

0.00

3

22100-BZ1-0000

OUTER COMP., CLUTCH

570.00

4

2212A-BZ1-0000

INNER ASS'Y, CLUTCH

390.00

5

22121-BZ1-0000

CENTER, CLUTCH

0.00

6

22131-BA6-9600

GUIDE, CLUTCH OUTER

20.00

7

22201-BA6-1000

DISK, CLUTCH FRICTION

20.00

8

22311-BA6-0000

PLATE, CLUTCH

25.00

9

22350-BZ1-0000

PLATE, CLUTCH PRESSURE

0.00

10

22361-BA7-0000

PLATE, CLUTCH LIFTER

0.00

11

22366-BA8-0000

LIFTER ROD, CLUTCH

0.00

12

23120-BZ1-0000

GEAR ASS'Y, PRIMARY DRIVE

230.00

13

23121-BZ1-0000

GEAR, PRIMARY DRIVE

0.00

14

23122-BZ1-0000

GEAR, SUB

0.00

15

23125-BZ1-0000

SPRING, SUB GEAR

0.00

16

90050-BA6-0000

SPECIAL BOLT, FLANGE, 6x22

0.00

17

90231-BA6-8300

NUT, LOCK, 16mm

20.00

18

90434-BA6-9300

WASHER, 16mm

8.00

19

90461-BA6-0000

WASHER B, SPLINE, 20mm

3.00

20

90465-BA8-0000

WASHER, THRUST, 20mm

6.00

21

91008-BA6-0000

BEARING, RADIAL BALL, 16003

20.00

22

S5014-75110

SPRING, CLUTCH

5.00

Enquiry

E-08 LEFT CRANK CASE COVER

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

11340-BZ1-0000

COVER COMP., LH.CRANK CASE

230.00

2

11342-BA8-0010

COVER, LH.CRANK CASE COVER

0.00

3

1135A-BA8-0000

COVER ASS'Y, REDUCTION GEAR

0.00

4

11355-BA8-0000

COVER, REDUCTION GEAR

0.00

5

11395-BA8-RZ00

GASKET, LH.SIDE COVER

25.00

6

9008A-CB2-PH00

CAP ASSY, 30mm

15.00

7

90084-CB2-PH00

CAP, AC.GENERATOR

0.00

8

90087-CB2-PH00

CAP, 30mm

0.00

9

91302-BA7-0050

O-RING, 27.4x2.4

2.00

10

91303-CB2-1000

O-RING, 13.8x2.5

0.00

11

91359-BA6-0030

O-RING, 63x3

10.00

12

S3891-05010-17

SCREW, WASHER, 5x10

0.00

13

S4301-10160

PIN, DOWEL, 10x16

0.00

14

S6001-06020-07

BOLT, FLANGE, SH.6x20

0.00

15

S6001-06040-07

BOLT, FLANGE, SH.6x40

0.00

16

S6001-06050-07

BOLT, FLANGE, SH.6x50

0.00

17

S6001-06055-07

BOLT, FLANGE, SH.6x55

0.00

18

S6001-06065-07

BOLT, FLANGE, SH.6x65

0.00

19

S6001-06070-07

BOLT, FLANGE, SH.6x70

0.00

Enquiry

E-09 GENERATOR

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

28110-BZ1-0000

GEAR COMP., START DRIVEN

170.00

2

28114-BA8-0000

COLLAR, STARTER DRIVEN GEAR

30.00

3

28120-BA6-0050

ONE WAY CLUTCH ASS'Y, STARTER

190.00

4

31100-BZ2-0000

GENERATOR ASS'Y, A.C.

0.00

5

31110-BA8-0000

FLYWHEEL COMP.

290.00

6

31120-BZ2-0000

STATOR COMP.

310.00

7

32976-BA6-9600

GUIDE, ACG.CORD

10.00

8

35759-BA1-1000

SWITCH ASS'Y, CHANGE

49.00

9

90010-BA6-0000

BOLT, SOCKET, 8x18

0.00

10

90404-BA8-0000

WASHER. 12x30

0.00

11

91305-BA6-0030

O-RING, 16.5x2.5

0.00

12

S3500-05016-0A

SCREW, PAN, 5x16

0.00

13

S3500-05032-0A

SCREW, PAN, 5x32

0.00

14

S4050-12080

NUT, FLANGE, 12mm

0.00

15

S6001-06014-00

BOLT, FLANGE, SH.6x14

0.00

Enquiry

E-10 STARTER MOTOR

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

28130-BA6-9600

GEAR COMP., REDUCTION

99.00

2

28132-BA6-9300

SHAFT, REDUCTION GEAR

0.00

3

28140-BZ1-0000

GEAR COMP., IDLE

95.00

4

28142-BA6-9000

SHAFT, IDLE GEAR

12.00

5

31210-BZ1-0000

MOTOR UNIT, STARTER

820.00

6

32601-BZ2-0000

CABLE, BATTERY EARTH

0.00

7

90117-BA6-0000

BOLT, FLANGE, 6x28

0.00

8

S4002-06080-0S

NUT, HEX, 6mm(Y)

0.00

9

S4101-06800

WASHER, PLAIN, 6mm

0.00

Enquiry

E-11 CRANK CASE

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

11100-BZ2-0000

CASE COMP., RH.CRANK

0.00

2

11191-BA8-RZ00

GASKET, CRANK CASE

34.00

3

11200-BZ1-0000

CASE COMP., LH.CRANK

0.00

4

12361-BA6-0010

HOLE CAP, TAPPET ADJUSTING

0.00

5

15290-BA8-0010

CAP ASS'Y, OIL DRAIN

18.00

6

15421-BA6-0000

SCREEN, OIL FILTER

8.00

7

15426-BA6-0000

SPRING, OIL FILTER SCREEN

3.00

8

1576A-BZ2-0000

TUBE ASS'Y, BREATHER

0.00

9

19522-BZ2-0000

CLAMP, WATER PUMP TUBE

0.00

10

90031-BZ1-0000

BOLT, CYLINDER STUD

0.00

11

90407-BA6-0000

PACKING, DRAIN COCK, 12.5x20

0.00

12

91008-BA7-0030

BEARING, NEEDLE, 21mm

18.00

13

91201-BA6-0330

SEAL, OIL, 20x34x7

15.00

14

91206-BA6-0130

SEAL, OIL, 14x28x7

12.00

15

91303-BA6-0000

O-RING, 35x3

2.00

16

S2800-12000

BOLT, DRAIN PLUG, 12mm

0.00

17

S4301-10160

PIN, DOWEL, 10x16

0.00

18

S4301-12160

PIN, DOWEL, 12x16

2.00

19

S6001-06050-00

BOLT, FLANGE, SH.6x50

0.00

20

S6001-06065-00

BOLT, FLANGE, SH.6x65

0.00

21

S6001-06070-00

BOLT, FLANGE, SH.6x70

0.00

22

S6001-06080-00

BOLT, FLANGE, SH.6x80

0.00

Enquiry

E-12 CRANK SHAFT / PISTON

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

13000-BZ1-0010

SHAFT COMP., CRANK

1140.00

2

1310A-BZ2-0000

PISTON SET

140.00

3

13101-BZ2-0000

PISTON

0.00

4

13111-BZ1-0000

PIN, PISTON

0.00

5

13121-BZ1-0000-M1

RING, PISTON TOP

25.00

6

13131-BZ1-0000-M1

RING, PISTON 2ND

28.00

7

13141-BZ1-0000-M1

RING, PISTON OIL

30.00

8

13400-BZ1-0010

BALANCER ASS'Y, CRANK

400.00

9

13410-BZ1-0010

BALANCER, CRANK

0.00

10

13411-BZ1-0000 / 13411-BZ1-0010

GEAR, BALANCER DRIVEN

0.00

11

13413-BA8-0000

PLATE, BALANCER GEAR SIDE

0.00

12

13413-BZ1-0000

PLATE, BALANCER GEAR SIDE

0.00

13

13414-SZ2-0000

SPRING, BALANCE GEAR

0.00

14

13416-BZ1-0000

WASHER, SPRING

0.00

15

13418-BZ1-0010

SUB GEAR, BALANCER DRIVEN

0.00

16

22218-HD2-8900

WASHER B, THRUST

0.00

17

90605-BA6-0000

SET RING, 20mm

0.00

18

90741-BA6-9600

KEY, WOODRUFF, 25x14x4

3.00

19

91001-BZ2-0000-M1

BEARING, RADIAL BALL(63/28)

115.00

20

91002-BZ1-0000-M1

BEARING, RADIAL BALL(6204)

25.00

21

91005-BZ2-0000-M1

BEARING, RADIAL BALL(6207)

0.00

22

S4601-17000

CLIP, PISTON PIN, 17mm

2.00

Enquiry

E-13 TRANSMISSION

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

11108-BA6-9000

PLATE, BEARING SETTING

0.00

2

2321A-BZ1-0000

SHAFT ASS'Y, MAIN

480.00

3

23210-BZ1-0000

SHAFT COMP., MAIN

130.00

4

2322A-BZ1-0000

SHAFT ASS'Y, COUNTER

890.00

5

23221-BA7-9000

SHAFT, COUNTER

90.00

6

23426-BZ1-0000

GEAR, C-1

280.00

7

23427-BA6-9600

COLLAR, C-1

18.00

8

23441-BZ1-0000

GEAR, M-2

99.00

9

23451-BZ1-0000

GEAR, C-2

270.00

10

23452-BA6-9000

BUSH, 20x23x9

13.00

11

23461-BZ1-0000

GEAR, M-3

60.00

12

23462-BA8-0000

BUSH, 20mm

20.00

13

23471-BZ1-0000

GEAR, C-3

50.00

14

23481-BZ1-0000

GEAR, M-4

48.00

15

23491-BZ1-0000

GEAR, C-4

44.00

16

23501-BZ1-0000

GEAR, M-5

50.00

17

23511-BZ1-0000

GEAR, C-5

52.00

18

23801-BZ1-0000

SPROCKET, DRIVE

35.00

19

23811-BA6-6010

PLATE A2, FIXING

0.00

20

90001-BA6-9300

BOLT, SOCKET, 6x16

0.00

21

90084-CB2-0000

BOLT, DRIVE SPROCKET FIXING

0.00

22

90451-BA6-0000

WASHER, THRUST, 15mm

0.00

23

90454-BA6-0000

WASHER, THRUST, 20mm

0.00

24

90455-BA6-0000

WASHER A, SPLINE, 20mm

0.00

25

90605-BA6-0000

SET RING, 20mm

0.00

26

91002-BZ1-0000-M1

BEARING, RADIAL BALL(6204)

25.00

27

91008-BZ1-0000-M1

BEARING, RADIAL BALL(6202Z)

0.00

28

91009-BZ1-0000-M1

BEARING, RADIAL BALL(6004)

0.00

Enquiry

E-14 SHIFT DRUM / SHIFT FORK

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

24211-BA6-0000

FORK, RH.GEAR SHIFT

0.00

2

2422A-BZ1-0000

FORK ASS'Y, GEAR SHIFT

106.00

3

24221-BZ1-0000

FORK, LH.GEAR SHIFT

0.00

4

24231-BA6-0100

FORK, CENTER GEAR SHIFT

0.00

5

24241-BA6-9600

SHAFT, GEAR SHIFT FORK GUIDE

0.00

6

24301-BA6-9600

DRUM, GEAR SHIFT

80.00

7

24411-BA6-0000

CAM, GEAR SHIFT

10.00

8

24430-BA6-9000

STOPPER COMP., GEAR SHIFT DRUM

0.00

9

24435-BA7-8900

SPRING, SHIFT DRUM STOPPER

0.00

10

2461A-BA8-0000

SPINDLE ASS'Y, GEAR SHIFT

80.00

11

24610-BA8-0000

SPINDLE COMP., GEAR SHIFT

0.00

12

24621-BA6-7600

PLATE, GEAR SHIFT

0.00

13

24631-BA6-0000

SPRING, GEAR SHIFT PLATE

0.00

14

24651-BA6-0000

SPRING, GEAR SHIFT RETURN

0.00

15

90023-BA6-9000

PIVOT, GEAR SHIFT DRUM STOPPER

0.00

16

90408-BA6-9000

WASHER, 6mm

0.00

17

90451-CB2-0000

WASHER, THRUST, 14mm

0.00

18

S2101-06025-0A

BOLT, HEX, 6x25

0.00

19

S4510-12000

CIR CLIP, EXTERNAL, 12mm

0.00

20

S4510-14000

CIR CLIP, EXTERNAL, 14mm

0.00

21

S6220-40100

ROLLER, 4x10

2.00

Enquiry

E-15 THROTTLE BODY

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

1620A-BZ1-0010

BODY ASS'Y, THROTTLE

700.00

2

1620B-BZ1-0010

BODY SET, THROTTLE

1140.00

3

16200-BZ1-0010

BODY, THROTTLE

0.00

4

16202-BZ1-0010

VALVE, THROTTLE

0.00

5

16203-BA1-R300

SPRING, THROTTLE RETURN

0.00

6

16204-BZ1-0020

LEVER COMP., THROTTLR

0.00

7

16205-BZ1-0000

SHAFT, THROTTLE

0.00

8

16206-BA1-R300

COLLAR, THROTTLE RETURN SPRING

0.00

9

16207-BA1-R300

SEAL, OIL

2.00

10

16208-BA1-R300

COLLAR, SIDE

0.00

11

16209-BZ1-0010

PLATE, THROTTLE ANCHOR

0.00

12

16210-BZ1-0000

INSULATOR, THROTTLE BODY

75.00

13

16217-BZ1-0000

O-RING, THROTTLE BODY

7.00

14

16220-BA1-R310-M1

ACTUATOR, IDLE SPEED

200.00

15

16230-BA1-R300-M1

SENSOR, THROTTLE POSITION

200.00

16

16237-BZ1-0000-M1

SCREW, ADJUST

0.00

17

16240-BA1-R300-M1

SENSOR, MAP & AT

225.00

18

16300-BZ1-0000-M1

INJECTOR ASS'Y

240.00

19

16310-BZ1-0000

BRACKET COMP., INJECTOR

0.00

20

16500-BA1-R320

CAP, INJECTOR

8.00

21

91304-BZ1-0000

O-RING, 39.7x3.5

0.00

22

S3600-03005

SCREW, FLAT, 3x5

0.00

23

S3892-04008-08

SCREW, WASHER, 4x8

0.00

24

S3892-05010-10

SCREW, WASHER, 5x10

0.00

25

S3893-05010-18

SCREW, WASHER, 5x10

0.00

26

S4001-08000-0S

NUT, HEX, 8mm

0.00

27

S4111-08800

WASHER, SPRING, 8mm

0.00

28

S4540-06018

E-RING, 6mm

0.00

29

S5701-06022-00

BOLT, FLANGE, 6x22

0.00

30

S6001-06016-00

BOLT, FLANGE, SH.6x16

0.00

31

S6001-06018-00

BOLT, FLANGE, SH.6x18

0.00

32

S6001-06022-00

BOLT, FLANGE, SH.6x22

0.00

Enquiry

F-01 HEADLIGHT

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

33100-BZ2-0000-M1

LIGHT ASS'Y, HEAD

490.00

2

33101-BZ2-0000

RIM, HEAD LIGHT

0.00

3

33108-BA1-2000

SPRING, UNIT HOLDER

0.00

4

33120-BZ2-0000

UNIT, HEAD LIGHT

0.00

5

33124-BZ2-0000

BRACKET, HEAD LIGHT CASE

25.00

6

33150-BA1-2000

SOCKET ASS'Y, POSITION LIGHT

0.00

7

34901-BZ2-0000

BULB, HEAD LIGHT(12V 60W/55W)PHILIPS

0.00

8

34903-BZ2-0000

BULB, WEDGE BASE(12V 5W) PHILIPS

0.00

9

61301-BZ2-RZ00

CASE, HEAD LIGHT(Black)

55.00

10

61304-BA7-0000

COLLAR, HEAD LIGHT SETTING

0.00

11

61315-BA5-0000

RUBBER, HEAD LIGHT MOUNTING

0.00

12

61316-BA5-0000

COLLAR, HEAD LIGHT STAY

0.00

13

90132-BA5-0000

BOLT, CAP, 6mm

0.00

14

90301-SB1-0000

NUT, 6mm, OPEN STAY

0.00

15

S3892-05016-00

SCREW, WASHER, 5x16

0.00

16

S3901-34210

SCREW, TAPPING, 4x10

0.00

17

S4050-10080

NUT, FLANGE, 10 mm

0.00

18

S4591-49000

CLIP, 4x90

0.00

Enquiry

F-02 COMBINATION METER

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

35010-BA1-0020

KEY SET

250.00

2

35100-BA1-0010

SWITCH ASS'Y, COMBI.

0.00

3

35110-BZ2-0000

UPPER COVER, COMBI.SWITCH

35.00

4

35111-BA1-0030-M1

KEY COMP.

0.00

5

35120-BZ2-0000

UNDER COVER, COMBI.SWITCH

15.00

6

35121-BA1-RB00

KEY, BLANK NO.1

0.00

7

37100-BZ2-RB00-M1

METER ASS'Y, COMBINATION

0.00

8

37101-BA7-9000

RUBBER, METER SETTING

0.00

9

37102-BA7-9000

WASHER

0.00

10

37200-BZ2-RB00

SPEEDOMETER ASS'Y

450.00

11

37203-BZ2-0000

CASE, SPEEDOMETER

95.00

12

37208-BA7-9000

CUSHION, METER(SP)

0.00

13

37209-BZ2-0000

SOCKET COMP., SPEEDOMETER

0.00

14

37211-BZ2-0000

STAY COMP., METER

0.00

15

S3700-04008-0B

SCREW, OVAL, 4x8

0.00

16

S3891-05010-00

SCREW, WASHER, 5x10

0.00

17

S3903-34410

SCREW, TAPPING, 4x16

0.00

18

S6001-06016-00

BOLT, FLANGE, SH.6x16

0.00

Enquiry

F-03 HANDLE LEVER / SWITCH / CABLE

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

17910-BZ1-0010

CABLE COMP., THROTTLE

35.00

2

22870-BZ2-PR00

CABLE COMP., CLUTCH

35.00

3

35150-BZ2-PR00

SWITCH ASS'Y, HAZARD START

90.00

4

35200-BZ2-PR00

SWITCH ASS'Y, WINKER

100.00

5

35350-BZ2-PR00

SWITCH ASS'Y, RR.STOP

15.00

6

45517-BZ2-PR00

HOLDER, MASTER CYLINDER

0.00

7

53141-BA5-9000-H1

PIPE, THROTTLE GRIP

0.00

8

53145-BA5-9000

GRIP COMP., RH.

40.00

9

53165-BA5-9000

GRIP, RH.HANDLE

0.00

10

53166-BA5-9000

GRIP COMP., LH.

35.00

11

53168-BA5-9000

CAP, GRIP END RH.

0.00

12

53172-BZ2-PR00

BRACKET, LH.HANDLE LEVER

0.00

13

53178-BZ2-PR00

LEVER COMP., LH.HANDLE

25.00

14

53190-BZ2-PR00

LEVER ASS'Y, LH.HANDLE

160.00

15

53192-BA6-0000

BOLT, WIRE ADJUSTING

0.00

16

88110-BA1-0010

MIRROR ASS'Y, RH.BACK

80.00

17

88120-BA1-0010

MIRROR ASS'Y, LH.BACK

80.00

18

90113-BA7-0000

BOLT, LH.HANDLE LEVER PIVOT

0.00

19

90201-BA6-1000

NUT, CAP, 6mm

0.00

20

90321-BA6-7500

NUT, FIXING

0.00

21

90652-BA7-7720-M2

BAND, WIRE(Black)

0.00

22

S3892-05025-00

SCREW, WASHER, 5x25

0.00

23

S3892-05028-00

SCREW, WASHER, 5x28

0.00

24

S3892-05035-00

SCREW, WASHER, 5x35

0.00

25

S6700-06022-10

BOLT, SOCKET, 6x22

0.00

Enquiry

F-04 FRONT BRAKE MASTER CYLINDER

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

35340-BA4-0000-M1

SWITCH ASS'Y, FR.STOP

10.00

2

45126-BZ2-PR10

HOSE COMP., FR.BRAKE

48.00

3

45127-BZ2-0000

HOSE B COMP., FR.BRAKE

40.00

4

45128-BZ2-0000

HOSE COMP., RH.FR.BRAKE

40.00

5

45500-BZ2-PR00

CYLINDER ASS'Y, FR.MASTER

200.00

6

45501-BZ2-PR00

BODY, MASTER CYLINDER

0.00

7

45512-BA4-0000-M1

PLATE, PROTECTOR

0.00

8

45513-BZ2-PR00

CAP, MASTER CYLINDER

0.00

9

45517-BA5-9000

HOLDER, MASTER CYLINDER 1 N

0.00

10

45520-BA4-0000-M1

DIAPHRAGM

0.00

11

45521-BA4-0000-M1

PLATE, DIAPHRAGM

0.00

12

45530-BZ1-0000-M1

PISTON SET, MASTER CYLINDER

0.00

13

4630A-BZ2-PR00

HOSE ASS'Y, JUNCTION VALVE

0.00

14

46300-BZ2-0000

JUNCTION VALVE

0.00

15

53175-BZ1-QB00-M1

LEVER COMP., RH.HANDLE

50.00

16

90113-BA4-0000-M1

BOLT, HANDLE LEVER

0.00

17

90145-BA7-9000

BOLT, OIL, 10x22(Black)

0.00

18

90201-BA6-1000

NUT, CAP, 6mm

0.00

19

90545-BA6-0000

WASHER, OIL BOLT

0.00

20

S3600-04012-1A

SCREW, FLATE, 4x12

0.00

21

S3893-04012-17

SCREW, WASHER, 4x12

0.00

22

S5701-06012-07

BOLT, FLANGE, 6x12

0.00

23

S5701-08030-00

BOLT, FLANGE, 8x30

0.00

24

S6700-06022-10

BOLT, SOCKET, 6x22

0.00

Enquiry

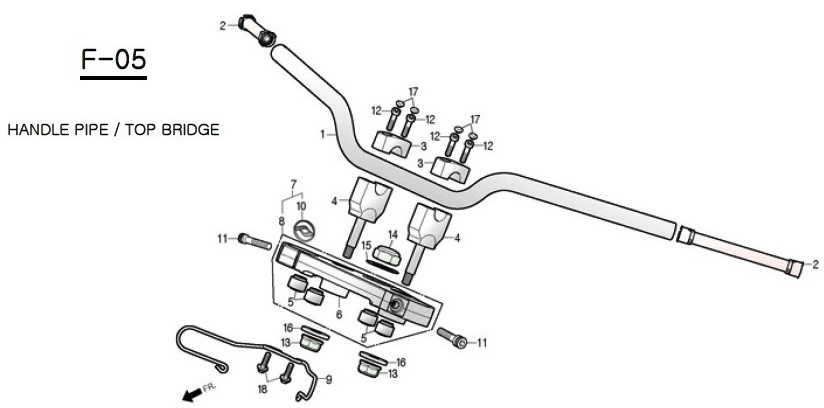

F-05 HANDLE PIPE / TOP BRIDGE

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

53100-BZ2-PR00

PIPE COMP., STEERING HANDLE

150.00

2

53110-BZ2-0000

WEIGHT ASS'Y, HANDLE

70.00

3

53131-BZ2-PR00

UPPER HOLDER, HANDLE

25.00

4

53132-BZ2-PR00

UNDER HOLDER, HANDLE

60.00

5

53133-BA5-0000

RUBBER, HANDLE CUSHION

0.00

6

53230-BZ2-0000

BRIDGE, FORK TOP

0.00

7

5330A-BZ2-0000

BRIDGE ASS'Y, FORK TOP

200.00

8

53300-BZ2-0000

BRIDGE COMP., FORK TOP

0.00

9

61315-BZ2-0000

GUIDE, CABLE

23.00

10

87524-SAB-0000

MARK(35), DAELIM

0.00

11

90112-BA5-0000

BOLT, SOCKET, 8x30

0.00

12

90185-BA7-0000

BOLT, HEX SOCKET, 8x32

0.00

13

90304-CB2-0030

NUT, U, 10mm

0.00

14

90304-HD2-0000

NUT, STEERING STEM

20.00

15

90503-BA4-0000

WASHER, STEERING STEM NUT

0.00

16

90535-BA5-0000

WASHER, HANDLE UNDER HOLDER

0.00

17

91456-BA6-7700

CAP, SOCKET BOLT, 8mm

0.00

18

S5701-08016-00

BOLT, FLANGE, 8x16

0.00

Enquiry

F-06 STEERING STEM

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

53200-BA1-2000

STEM COMP., STEERING

450.00

2

53205-BA1-2000

COVER, BOTTOM BRIDGE RH.

35.00

3

53206-BZ2-0000

STAY, FR.EMBLEM

80.00

4

53207-BZ2-0000

EMBLEM COMP., FR.

38.00

5

53208-BZ2-0000

JUNCTION VALVE STAY

33.00

6

53214-CB2-0100

DUST SEAL, STEERING HEAD

2.00

7

53215-CB2-0000

WASHER, STEERING HEAD DUST-SEAL

2.00

8

53216-BA5-RB10-M1

BEARING, STEERING UPPER

65.00

9

53217-BA5-RB10-M1

BEARING, STEERING UNDER

65.00

10

53218-BA5-RB20-M2

OUTER, BEARING

0.00

11

53219-BA5-RB20-M2

INNER, BEARING (DIA 22.5)

0.00

12

53220-BA5-RB20-M2

INNER, BEARING (24mm)

0.00

13

53220-BA6-0000

THREAD COMP., STEERING HEAD TOP

20.00

14

53255-BA1-2000

COVER, BOTTOM BRIDGE LH.

35.00

15

53600-BE0-0000

LOCK, STEERING HANDLE

0.00

16

90103-BZ2-0000

BOLT, SPECIAL FLANGE

0.00

17

90164-CB2-0000-M1

SCREW, LOCK, 6x12

0.00

18

90191-SB1-0000

SCREW, SPECIAL, 6x10

0.00

19

90192-BA1-0000

SCREW, SPECIAL, 5x12

0.00

20

S5701-06012-00

BOLT, FLANGE, 6x12

0.00

21

S5701-06012-07

BOLT, FLANGE, 6x12

0.00

Enquiry

F-07 FRONT FENDER

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

61100-BZ2-0000-HS, 61100-BZ2-0000-PB

FENDER, FR.(G/SILVER), FENDER, FR.(P/BLACK)

250.00

2

61102-BA1-0000

BRACKET COMP., FR.FENDER

0.00

3

90071-BA5-0000

BOLT, FLANGE SOCKET, 6x16

0.00

Enquiry

F-08 FRONT FORK

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

51400-BZ2-PR00

FORK ASS'Y, RH.FR.

700.00

2

51401-BA1-2000

SPRING, FR.FORK

0.00

3

51410-BA1-2000

PIPE COMP., FR.FORK

0.00

4

51412-BA1-2000

SPRING, REBOUND

0.00

5

51420-BZ2-PR00

CASE, RH.BOTTOM

0.00

6

51425-BA1-2000

SEAL, DUST

0.00

7

51427-BA1-2000

BUSH, GUIDE

0.00

8

51432-BA1-2000

PIECE, OIL LOCK

0.00

9

51437-BA1-2000

RING, PISTON

0.00

10

51440-BA1-2000

PIPE, SEAT

0.00

11

51441-BA1-2000

RING, BACK UP

0.00

12

51500-BZ2-PR00

FORK ASS'Y, LH.FR.

700.00

13

51520-BZ2-PR00

CASE, LH.BOTTOM

0.00

14

90116-BA1-2000

BOLT, SOCKET

0.00

15

90123-BA1-2000

BOLT, FR.FORK

0.00

16

90544-BA1-2000

WASHER, SPECIAL

0.00

17

90601-BA1-2000

RING, OIL SEAL STOP

0.00

18

91255-BA1-2000

SEAL, OIL

39.00

19

91356-BA1-2000

O-RING

0.00

Enquiry

F-09 FRONT BRAKE CALIPER

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

43352-BZ1-0000-M1

SCREW, BLEEDER

0.00

2

43353-BZ1-0000-M1

CAP, BLEEDER

0.00

3

45100-BZ1-0010-M1

CALIPER ASS'Y, LH.FR.(GRAY)

290.00

4

45101-BZ1-0010-M1

BODY CALIPER

0.00

5

45105-BZ1-0000-M1

PAD COMP. A

25.00

6

45106-BZ1-0000-M1

PAD COMP. B

25.00

7

45107-BZ1-0000-M1

PISTON

0.00

8

45108-BZ1-0000-M1

SPRING, PAD

0.00

9

45109-BZ1-0000-M1

SEAL DUST

0.00

10

45110-BZ1-0000-M1

BRACKET, CALIPER(LH.)

0.00

11

45112-BZ1-0000-M1

RETAINER

0.00

12

45131-BZ1-0000-M1

PIN, BOLT

0.00

13

45132-BZ1-0000-M1

BOOT, PIN BUSH

0.00

14

45133-BZ1-0000-M1

BOOT, PIN

0.00

15

BOLT A, PIN

BOLT A, PIN

0.00

16

45200-BZ1-0010-M1

CALIPER ASS'Y, RH.FR.(GRAY)

290.00

17

45201-BZ1-0010-M1

CALIPER BODY, LH.

0.00

18

45203-BZ1-0000-M1

PLUG, PIN

0.00

19

45209-BZ1-0000-M1

SEAL, PISTON

0.00

20

45210-BZ1-0000-M1

BRACKET, CALIPER(RH.)

0.00

21

45215-BZ1-0000-M1

PIN, HANGER

0.00

22

90101-BA5-0000

BOLT,SPECIAL FLANGE, 8X31

0.00

Enquiry

F-10 FRONT WHEEL

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

42753-BA7-0000

VALVE, RIM, TR 413

6.00

2

44301-BA5-0000

AXLE, FR WHEEL

25.00

3

44311-BA5-9000

COLLAR, FR.WHEEL SIDE

0.00

4

44600-BZ2-RZ00

WHEEL ASS'Y, FR.

0.00

5

44601-BZ2-RZ00

WHEEL COMP., FR.CASTING

700.00

6

44620-BA5-9000

COLLAR, FR.DISTANCE

0.00

7

44621-BZ2-0000

SPACER, DISTANCE COLLAR

0.00

8

44680-BA6-0000

RETAINER, GEAR BOX

0.00

9

44711-BZ2-0000-M1

TIRE, FR.

0.00

10

44800-BZ2-0000-M1

SENSOR ASS'Y, SPEED

90.00

11

45121-BZ2-0000

DISK, FR.BRAKE

190.00

12

45351-BA5-9010-M1

DISK, LH.FR.BRAKE

190.00

13

90106-BA5-0000

BOLT, FR.DISK, 8x24

0.00

14

90305-SE5-0000

NUT, U, 14mm

5.00

15

91257-BA6-0030

OIL SEAL, 28x42x7

4.00

16

91258-BA6-0060

SEAL, DUST, 40x50x5

0.00

17

S6140-63020-10

BEARING, BALL RADIAL, 6302(UU)

0.00

Enquiry

F-11 REAR BRAKE CALIPER / MASTER CYLINDER

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

4310A-BA4-0000-M1

PAD SET, REAR BRAKE

50.00

2

43101-BA1-2000

BODY, CALIPER

0.00

3

43105-BA4-0000-M1

PAD COMP., INNER

0.00

4

43106-BA4-0000-M1

PAD COMP., OUTER

0.00

5

43107-BA4-0000-M1

PISTON

0.00

6

43108-BA4-0000-M1

SPRING, PAD

0.00

7

43109-BA4-0000-M1

SRAL, DUST

0.00

8

43110-BA1-2000

BRACKET, RR.CALIPER

55.00

9

43131-BA4-0000-M1

BOLT, PIN

0.00

10

43132-BA4-0000-M1

BUSH, BOOT PIN

0.00

11

43133-BA4-0000-M1

BOOT, PIN

0.00

12

43134-BA4-0000-M1

PLUG, DUST

0.00

13

43135-BA4-0000-M1

BOLT A, PIN

0.00

14

43137-BA4-0000-M1

PAD, HANGER PIN

0.00

15

43150-BA1-2000

CALIPER ASS'Y, RR.

290.00

16

43203-BA4-0000-M1

O RING

0.00

17

43204-BA4-0000-M1

CIR CLIP, INTERNAL, 21mm

0.00

18

43205-BA4-0000-M1

WASHER

0.00

19

43209-BA4-0000-M1

SEAL, PISTON

0.00

20

43210-BA4-0000-M1

CALIPER BRACKET

0.00

21

43215-BA4-0000-M1

PIN, HANGER

0.00

22

43310-BZ2-0000

HOSE COMP., RR.BRAKE

75.00

23

43352-BA4-0000-M1

SCREW, BLEEDER

0.00

24

43353-BA4-0000-M1

CAP, BLEEDER

0.00

25

43503-BA4-0000-M1

PIPE, TUBE JOINT

0.00

26

43504-BA4-0000-M1

BOOT COMP.

0.00

27

4351A-BZ2-0000

HOSE ASS'Y, RR.MASTER CYLINDER

0.00

28

43510-BZ2-0000-M1

MASTER CYLINDER ASS'Y, RR.

200.00

29

43512-BZ2-0000

HOSE, RR.MASTER CYLINDER

40.00

30

43516-BZ2-0000

PLATE COMP., BRAKE PIVOT

45.00

31

4352A-CB4-3000

RESERVOIR ASS'Y, RR.

15.00

32

43521-BA4-0000-M1

RR. PISTON

0.00

33

43530-BZ2-0000

ROD COMP., RR.BRAKE

0.00

34

45502-BA4-0000-M1

CUP, SECONDARY

0.00

35

45503-BA4-0000-M1

CUP, PRIMARY

0.00

36

45508-BA4-0000-M1

SPRING

0.00

37

46504-BA4-0000-M1

JOINT, BRAKE ROD

0.00

38

46505-BA4-0000-M1

PIN C, JOINT

0.00

39

90145-BA7-9000

BOLT, OIL, 10x22(Black)

0.00

40

90545-BA6-0000

WASHER, OIL BOLT

0.00

41

S3893-04012-18

SCREW, WASHER, 4x12

0.00

42

S4002-08000-0S

NUT, HEX, 8mm

0.00

43

S4201-20150

SPLIT PIN, 2.0x15

0.00

44

S5002-41200-08

CLAMP D 12.0,TUBE

0.00

45

S5701-06012-07

BOLT, FLANGE, 6x12

0.00

46

S5701-06028-00

BOLT, FLANGE, 6x28

0.00

47

S5801-08025-00

BOLT, FLANGE, 8x25

0.00

Enquiry

F-12 REAR WHEEL

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

41200-BZ2-0000

SPROCKET ASS'Y, FINAL DRIVEN

105.00

2

41241-BA1-2000

DAMPER, RR.WHEEL

12.00

3

42301-BA1-2000

AXLE, RR.WHEEL

29.00

4

42303-BZ1-0000

SLEEVE, RR.WHEEL

0.00

5

42304-BA1-2000

COLLAR, RR.WHEEL SIDE(33x19.1)

13.00

6

42312-BA1-2000

COLLAR, RR.AXLE(28x19.1)

11.00

7

42600-BZ2-RZ00

WHEEL ASS'Y, RR.

0.00

8

42601-BA1-2000-BK

WHEEL COMP., RR.CASTING(Black)

750.00

9

42605-BZ2-0000

FLANGE ASS'Y, FINAL DRIVEN

210.00

10

42610-BZ1-0000

FLANGE, FINAL DRIVEN

0.00

11

42620-BA1-2000

COLLAR, RR.DISTANCE

0.00

12

42653-BZ1-0000

O-RING, 46x3

0.00

13

42711-BZ2-0000-M1

TIRE, RR.

0.00

14

42753-BA7-0000

VALVE, RIM, TR 413

6.00

15

44621-BZ2-0000

SPACER, DISTANCE COLLAR

0.00

16

45351-BA1-2000

DISK, RR.BRAKE

190.00

17

90106-BA5-0000

BOLT, FR.DISK, 8x24

0.00

18

90128-BZ1-0000

BOLT, STUD, 10x44

0.00

19

90304-CB2-0030

NUT, U, 10mm

0.00

20

90305-SE5-0000

NUT, U, 14mm

5.00

21

91257-BA6-0030

OIL SEAL, 28x42x7

4.00

22

91257-BZ1-0000

OIL SEAL, 33x47x7

0.00

23

S6140-63020-10

BEARING, BALL RADIAL, 6302(UU)

0.00

24

S6140-62040-10

BEARING, BALL RADIAL, 6204

0.00

Enquiry

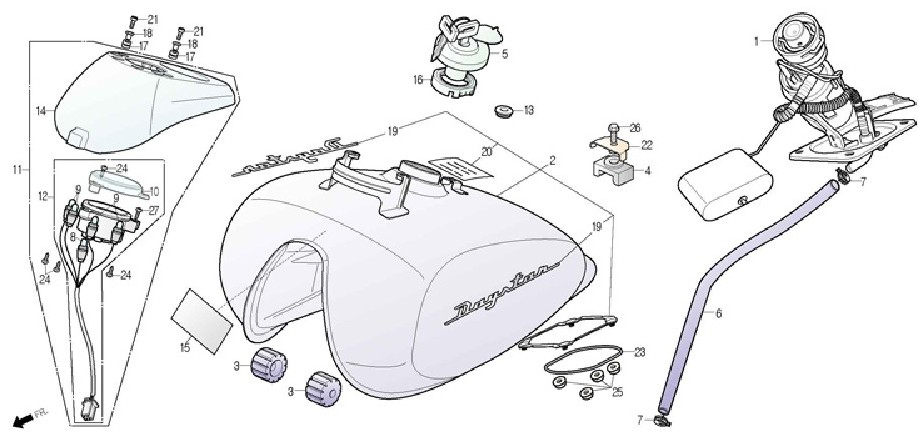

F-13 FUEL TANK / PUMP

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

16700-BZ2-0000-M1

PUMP ASS'Y, FUEL

430.00

2

1751A-BZ2-RA00-HS, 1751A-BZ2-RA00-PB

TANK SET, FUEL(G/SILVER), TANK SET, FUEL(P/BLACK)

600.00

3

17611-BA1-0000

CUSHION, FUEL TANK FR.

0.00

4

17613-BA1-0000

CUSHION, FUEL TANK RR.

0.00

5

17620-BA7-RB00

CAP COMP., FUEL FILLER

0.00

6

17636-BZ2-RB00

HOSE A, FUEL

39.00

7

19411-SA4-0000

CLIP, HOSE

0.00

8

34908-BA6-9510-M1

BULB, WEDGE BASE T6.5

0.00

9

34908-BZ2-0000

BULB, LED

0.00

10

37212-BZ2-0000

LENS

0.00

11

3730A-BZ2-NA00

METER SET, FUEL

0.00

12

37300-BZ2-0000

METER ASS'Y, FUEL

160.00

13

64315-CD1-0000

GROMMET, TOP COVER

0.00

14

83400-BZ2-0000

COVER, FUEL METER

130.00

15

83401-BZ2-0000

RUBBER, FUEL METER

0.00

16

83520-BA1-0000

RUBBER, METER COVER SEALING

0.00

17

84303-BA1-0000

RUBBER A, FR.METER COVER SETTING

0.00

18

84304-BA1-0000

COLLAR A, FR.METER COVER SETTING

0.00

19

87121-BZ2-0000

MARK, FUEL TANK

0.00

20

87560-BA7-9000-EX

MARK, DRIVE CAUTION

0.00

21

90010-BA4-0000

BOLT, SOCKET, 6x16

0.00

22

90324-BA1-0200

COLLAR, FUEL TANK REAR

0.00

23

91305-BA1-R310

O-RING, 64.8x54.8

0.00

24

S3903-24420

SCREW, TAPPING, 4x16

0.00

25

S4050-06080

NUT, FLANGE, 6mm

0.00

26

S5701-08025-00

BOLT, FLANGE, 8x25

0.00

Enquiry

F-14 SEAT

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

77100-BZ2-0000

SEAT COMP.

0.00

2

77204-BA5-9000

RUBBER A, SEAT CUSHION

0.00

3

77205-BA6-0000

RUBBER B, SEAT SETTING

0.00

4

77206-BA7-9000

RUBBER B, SEAT CUSHION

0.00

5

77210-BZ2-0000

BELT COMP., SEAT

0.00

6

77302-BZ2-0000

STAY B, RR.SEAT

0.00

7

77303-BZ2-0000

STAY, MAIN SEAT

0.00

8

80107-BA5-0000

RUBBER, RR.FENDER

0.00

9

90001-BZ2-0000

COLLAR, SIDE MOUNT

0.00

10

S3404-06016-00

BOLT, WASHER, 6x16

0.00

11

S4050-06080

NUT, FLANGE, 6mm

0.00

12

S6001-06016-02

BOLT, FLANGE, SH.6x16

0.00

Enquiry

F-15 SIDE COVER

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

17222-BZ2-0000

COVER COMP., AIR CLEANER RH.

110.00

2

50142-BA7-9700

GROMMET, SIDE COVER

0.00

3

64228-BA5-RB00

LOCK ASS'Y, POCKET LID

0.00

4

75581-SC1-9500

SET SPRING, LOCK KEY

0.00

5

77236-SE5-0000

WASHER, SEAT LOCK

0.00

6

80101-BA5-0000

RUBBER, RR.FENDER CUSHION

0.00

7

8350A-BZ2-RZ00-PB, 8350A-BZ2-RZ00-HS

COVER ASS'Y, RH.SIDE(P/BLACK), COVER ASS'Y, RH.SIDE(G/SILVER)

250.00

8

8350B-BZ2-0000-PB, 8350B-BZ2-0000-HS

COVER ASS'Y, RH. SIDE(P/BLACK), COVER ASS'Y, RH.SUB SIDE(G/SILVER)

0.00

9

83500-BZ2-0000-PB, 83500-BZ2-0000-HS

COVER, RH.SIDE(P/BLACK), COVER, RH.SIDE(G/SILVER)

0.00

10

83503-BZ2-0000

STAY, TOOL BOX

0.00

11

83512-BZ2-0000

EMBLEM, SIDE COVER

0.00

12

8360A-BZ2-0000-PB, 8360A-BZ2-0000-HS

COVER ASS'Y, LH.SIDE(P/BLACK), COVER ASS'Y, LH.SIDE(G/SILVER)

250.00

13

83600-BZ2-0000-PB, 83600-BZ2-0000-HS

COVER, LH.SIDE(P/BLACK), COVER, LH.SIDE(P/SILVER)

0.00

14

83601-BA6-0000

GROMMET A, SIDE COVER

0.00

15

90001-BA5-0000

COLLAR, SIDE MOUNT

0.00

16

90107-BA5-9100

BOLT, SPECIAL, 6x22

0.00

17

90110-SE5-0000

SCREW, SPECIAL, 6x14

0.00

18

S3903-25210

SCREW, TAPPING, 5x12

0.00

19

S3903-25310

SCREW, TAPPING, 5x16

0.00

Enquiry

F-16 BATTERY / LOWER COVER

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

31500-BA4-0000-M1

BATTERY, 12V 10AH(MF)

0.00

2

32401-BZ2-0000

CABLE, START MAGNETIC BATTERY

0.00

3

32410-BZ2-0000

CABLE, START MOTOR

0.00

4

3585A-BZ2-0000

SWITCH SET, START MAGNETIC

120.00

5

35850-BA1-R300

SWITCH ASS'Y, START MAGNETIC

117.00

6

35856-BA6-8300

RUBBER, MAGNETIC SHOCK

0.00

7

5032A-BA1-R300

BAND ASS'Y, BATTERY

0.00

8

50320-BZ2-0000

BOX ASS'Y, BATTERY

0.00

9

83601-BA6-0000

GROMMET A, SIDE COVER

0.00

10

8370A-BZ2-0000

COVER ASS'Y, RH.LOWER

80.00

11

83700-BZ2-0000

COVER,RH.LOWER

0.00

12

8380A-BZ2-0000

COVER ASS'Y, LH.LOWER

80.00

13

83800-BZ2-0000

COVER, LH.LOWER

0.00

14

84301-BA1-0000

RUBBER, FR.METER COVER SETTING

0.00

15

84302-BA1-0000

COLLAR, FR.METER COVER SETTING

0.00

16

90111-SE5-1000

BOLT, FLANGE, 6mm

0.00

17

90115-BA1-0000

SCREW, SPECIAL, 5x18

0.00

18

S3404-06016-00

BOLT, WASHER, 6x16

0.00

19

S4002-06080-0S

NUT, HEX, 6mm(Y)

0.00

20

S4101-06800

WASHER, PLAIN, 6mm

0.00

21

S4111-06800

WASHER, SPRING, 6mm

0.00

22

S8200-31500

BLADE FUSE 15A

0.00

23

S8200-33000

BLADE FUSE 30A

0.00

Enquiry

F-17 EXHAUST MUFFLER

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

18200-BZ2-0000

MUFFLER ASS'Y, EX.

0.00

2

18241-BZ2-0000

PROTECTOR A, EX.PIPE

55.00

3

18242-BZ2-0000

PROTECTOR B, EX.PIPE

45.00

4

18243-BZ2-0000

PROTECTOR C, EX.PIPE

50.00

5

18261-BZ2-0000

CLAMP, MUFFLER PROTECTOR

8.00

6

18262-BZ2-0000

CLAMP, MUFFLER PROTECTOR B

8.00

7

18291-BA6-RB00

GASKET, EX.PIPE

10.00

8

18293-BA5-0000

RUBBER, PROTECTOR PACKING

0.00

9

18302-BA1-0000

COLLAR COMP., MUFFLER

30.00

10

1831A-BZ2-0000

MUFFLER BODY ASS'Y, LOWER

280.00

11

18315-BZ2-0000

STAY, MUFFLER UPPER

50.00

12

18320-BZ2-0000

PIPE COMP., EX.

1150.00

13

1833A-BZ2-0000

MUFFLER BODY ASS'Y, UPPER

280.00

14

18340-BA1-RB00

PROTECTOR, MUFF.SIDE

50.00

15

18371-BA5-9000

BAND, MUFFLER

0.00

16

18373-BA1-K300

STAY COMP., MUFFLER DAMPER

28.00

17

18391-BA6-0000

PACKING, MUFFLER

25.00

18

18410-BZ2-0000

SENSOR, OXYGEN

299.00

19

50608-BA5-9000

RUBBER, MUFFLER MOUNTING

0.00

20

90011-SE1-0000

SCREW, SPECIAL, 5x8

0.00

21

90304-BA7-0000

NUT, HEX CAP, 6mm

0.00

22

90309-CB3-0000

NUT, FLANGE, 8mm

0.00

23

S4050-08080

NUT, FLANGE, 8mm

0.00

24

S4101-05000

WASHER, PLAIN, 5mm

0.00

25

S4111-05000

WASHER, SPRING, 5mm

0.00

26

S5701-08012-00

BOLT, FLANGE, 8x12

0.00

27

S5701-08030-00

BOLT, FLANGE, 8x30

0.00

Enquiry

F-18 AIR CLEANER

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

15772-BA7-0100

CLIP, BREATHER TUBE

0.00

2

17200-BZ2-0000

CLEANER ASS'Y, AIR

295.00

3

17213-BZ2-0000

ELEMENT, AIR CLEANER

49.00

4

17219-BZ2-0000

SEAL, AIR CLEANER COVER

0.00

5

17220-BZ2-0000

COVER COMP., AIR CLEANER

0.00

6

1725A-BZ2-0000

COVER ASS'Y, AIR CLEANER INLET

0.00

7

17251-BZ2-0000

RUBBER, SEAL

0.00

8

17256-BA1-R300

BAND 50, AIR CLEANER CONNECTING TUBE

0.00

9

17260-BZ2-0000

STAY, AIR CLEANER

24.00

10

17337-BA7-3000

FILTER

0.00

11

1735A-BZ2-0000

TUBE, ASS'Y, DRAIN 1 Y

0.00

12

17358-BA7-0000

TUBE, DRAIN

0.00

13

17359-BZ2-0000

TUBE, OIL DRAIN

0.00

14

17370-SA1-0000

PLUG, BREATHER TUBE

0.00

15

17371-SA1-0000

CLIP, BREATHER TUBE

0.00

16

90110-SE5-0000

SCREW, SPECIAL, 6x14

0.00

17

90111-SE5-1000

BOLT, FLANGE, 6mm

0.00

18

S3892-06012-00

SCREW, WASHER, 6x12

0.00

19

S3893-05016-08

SCREW, WASHER, 5x16

0.00

20

S5701-06010-00

BOLT, FLANGE, 6x10

0.00

21

S5701-06016-00

BOLT, FLANGE, 6x16

0.00

Enquiry

F-19 BRAKE / CHANGE PEDAL

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

16187-BA1-2000

SPRING, WAVE WASHER

0.00

2

24700-BZ2-0000

PEDAL ASS'Y, GEAR CHANGE

99.00

3

24701-BZ2-0000

PEDAL, GEAR CHANGE

0.00

4

24711-BZ2-0000

ARM, GEAR CHANGE

0.00

5

24721-BA5-3000

TIE ROD, A

0.00

6

24722-BA5-3000

TIE ROD, B

0.00

7

24724-BA6-0000

COVER, DUST

0.00

8

24781-BA7-0000

RUBBER, CHANGE PEDAL

0.00

9

35350-BA6-9600-M1

SWITCH ASS'Y, RR.STOP

13.00

10

35357-BA7-9000

SPRING, STOP SWITCH

2.00

11

46500-BZ2-0000

PEDAL COMP., RR.BRAKE

50.00

12

46511-BZ2-0000

ARM A, RR.BRAKE

38.00

13

46514-BA4-0000

SPRING, RR.BRAKE PEDAL

4.00

14

90065-BZ2-0000

BOLT, TIE ROD

0.00

15

90201-BA5-0000

NUT, GOVERNOR ARM FIXING

0.00

16

90436-BA5-0000

WASHER, SPECIAL

0.00

17

90590-BA7-0000

WASHER, 18.5mm

0.00

18

S2101-06020-0A

BOLT, HEX. 6x20

0.00

19

S2101-08025-0A

BOLT, HEX. 8x25

0.00

20

S4002-06020-0S

NUT, HEX. 6mm

0.00

21

S5701-06018-00

BOLT, FLANGE, 6x18

0.00

Enquiry

F-20 STEP

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

16187-CB3-0000

SPRING, WAVE WASHER

0.00

2

50603-HD2-0000

PIN, MAIN STEP BAR JOINT

0.00

3

5061A-BZ2-0000

RH.MAIN STEP BAR SET

110.00

4

5061B-BZ2-0000

COVER ASS'Y, RH.RR.STEP

70.00

5

50610-BZ2-0000

RH.MAIN STEP BAR

55.00

6

50614-BZ2-0000

HINGE, RH.MAIN STEP

0.00

7

50615-BZ2-0000

COVER, RH.RR.STEP

0.00

8

50617-BZ2-0000

RUBBER, MAIN STEP

7.00

9

50619-SA8-0000

SPRING, STEP RETURN

0.00

10

50623-BA6-1000

RUBBER B, STEP MOUNT

0.00

11

50625-BZ2-0000

COLLAR, MAIN STEP

0.00

12

5065A-BZ2-0000

LH.MAIN STEP BAR SET

120.00

13

5065B-BZ2-0000

COVER ASS'Y, LH.RR.STEP

70.00

14

50650-BZ2-0000

LH.MAIN STEP BAR

55.00

15

50654-BZ2-0000

HINGE, LH.MAIN STEP

40.00

16

50655-BZ2-0000

COVER, LH.RR.STEP

0.00

17

50810-BZ2-0000

BAR ASS'Y, RH.PILLION STEP

80.00

18

50811-BZ2-0000

BAR ASS'Y, LH.PILLION STEP

80.00

19

50812-BZ2-0000

RH.PILLION STEP BAR

0.00

20

50813-BZ2-0000

LH.PILLION STEP BAR

0.00

21

50814-BZ2-0000

PLATE, PILLION STEP

0.00

22

50815-SE1-0000

SPRING, PILLION STEP

0.00

23

50817-BZ2-0000

RUBBERP, PILLION STEP

6.00

24

84301-BA1-0000

RUBBER, FR.METER COVER SETTING

0.00

25

84302-BA1-0000

COLLAR, FR.METER COVER SETTING

0.00

26

90115-BA1-0000

SCREW, SPECIAL, 5x18

0.00

27

90132-BZ2-0000

BOLT, CAP, 6mm

0.00

28

90192-BA1-0000

SCREW, SPECIAL, 5x12

0.00

29

S4102-08800

WASHER, PLAIN, 8mm

0.00

30

S4201-16150

PIN, SPLIT, 1.4x15

0.00

31

S5701-08032-00

BOLT, FLANGE, 8x32 4

0.00

32

S6211-08000

BALL, STEEL, #8

0.00

Enquiry

F-21 STAND

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

35700-BZ2-0000-M1

SWITCH ASS'Y, SIDE STAND

120.00

2

50500-BA1-2000

STAND COMP., MAIN

180.00

3

50502-BA1-2000

RUBBER, MAIN STAND STOP

10.00

4

5051A-BA7-0000-EU

SPRING SET, MAIN STAND

20.00

5

50510-BA7-0000-EU

SPRING, MAIN STAND OUTER

0.00

6

50511-BA7-0000-EU

SPRING, MAIN STAND INNER

0.00

7

50526-BA6-9600

SHAFT, MAIN STAND PIVOT

18.00

8

5053A-SE1-RB00

SPRING SET, SIDE STAND

10.00

9

50530-BZ2-0000

BAR COMP., SIDE STAND

140.00

10

50532-SE1-RB00

SPRING, SIDE STAND INNER

0.00

11

50533-SE1-RB00

SPRING, SIDE STAND OUTER

0.00

12

90092-BA6-0000

BOLT, FLANGE, 6x20

0.00

13

90109-SZ2-0000

SCREW, SIDE STAND PIVOT

0.00

14

90304-SE6-0000

NUT, U, 10mm

0.00

15

90485-CB2-0000

WASHER, 8mm

0.00

16

90521-CB2-0000

WASHER, 17x22

0.00

17

S4201-30300

PIN, SPLIT, 2.7x30

0.00

Enquiry

F-22 SWING ARM / CHAIN CASE

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

1136A-BZ2-0000

GUIDE ASS'Y, DRIVE CHAIN

30.00

2

11365-BZ2-0000

GUIDE COMP., DRIVE CHAIN

0.00

3

40510-BZ2-0000

CASE COMP., CHAIN

120.00

4

40511-BA1-2000

RUBBER, CHAIN CASE

0.00

5

40530-BZ2-0000

CHAIN, O-RING

300.00

6

5210A-BZ2-0000

SWINGARM ASSY, RR.

0.00

7

52100-BZ2-0000

SWINGARM SET, RR.

600.00

8

52104-BA1-2000

BUSH, RR.FORK

15.00

9

52107-BA5-RB00

BEARING, RR.FORK PIVOT

20.00

10

52109-BA1-2000

COLLAR, CHAIN SLIDER

0.00

11

52110-BZ2-0000

SWINGARM COMP., RR.

0.00

12

52141-BA5-9000

COLLAR, PIVOT DISTANCE CENTER

30.00

13

52144-BA1-2000

CAP, RR.FORK DUST SEAL

8.00

14

52170-BA1-2000

SLIDER, CHAIN

28.00

15

80110-BA1-2000

FENDER, RR.SUB

20.00

16

83551-HD2-8900

GROMMET, SIDE COVER

0.00

17

87505-BZ2-MA00

LABEL, TIRE

0.00

18

87507-BZ2-MA00

LABEL, DRIVE CHAIN

0.00

19

87562-BA1-0010

MARK, MUFF. CAUTION

0.00

20

90121-BA5-9000

BOLT, RR.FORK PIVOT

25.00

21

90305-SE5-0000

NUT, U, 14mm

5.00

22

S3404-06012-00

BOLT, WASHER, 6x12

0.00

23

S3901-26180

SCREW, TAPPING, 6x12

0.00

24

S4030-08000

NUT, HEX, 8mm

0.00

25

S4101-08000

WASHER, PLAIN, 8mm

0.00

26

S501A-BZ2-0000

ADJUSTER C ASS'Y, CHAIN RH.

20.00

27

S5014-BA1-2000

ADJUSTER C, CHAIN RH.

0.00

28

S502A-BZ2-0000

ADJUSTER C ASS'Y, CHAIN LH.

20.00

29

S5024-BA1-2000

ADJUSTER C, CHAIN LH.

0.00

30

S5701-06010-00

BOLT, FLANGE, 6x10

0.00

31

S6001-06025-00

BOLT, FLANGE, SH.6x25

0.00

Enquiry

F-23 REAR CUSHION

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

52400-BZ2-0000-M1.

CUSHION ASS'Y, RR.

250.00

2

90503-BZ2-0000

WASHER, TANK CUSHION 2 Y

0.00

3

90535-BA1-2000

WASHER, RR.CUSHION

0.00

4

S4021-10000-0S

NUT, CAP, 10mm

0.00

5

S5701-06016-00

BOLT, FLANGE, 6x16

0.00

Enquiry

F-24 GRAP RAIL / REAR FENDER

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

33741-SE5-RB00-M1

REFLECTOR, REFLEX

12.00

2

37106-BA6-9610

RUBBER, METER STAY MOUNT

0.00

3

77330-BZ2-0000

RAIL COMP., RH.GRAB

170.00

4

77331-BA7-9200

RUBBER, GRAB RAIL

0.00

5

77340-BZ2-0000

RAIL COMP., LH.GRAB

170.00

6

8010B-BZ2-0000-PB, 8010B-BZ2-0000-HS

FENDER SET, RR.(P/BLACK), FENDER SET,RR.(G/SILVER)

400.00

7

80100-BZ2-0000-PB, 80100-BZ2-0000-HS

FENDER, RR.(P/BLACK), FENDER, RR.(G/SILVER)

0.00

8

80101-BA1-0000

RUBBER, LICENSE PLATE

0.00

9

80101-BA5-0000

RUBBER, RR.FENDER CUSHION

0.00

10

80108-BA5-9000

RUBBER, RR.FENDER MOUNT

0.00

11

80110-BZ2-0000

MUDGUARD, RR.

60.00

12

80125-BZ2-0000

BRACKET ASS'Y, RR.FENDER

280.00

13

87527-SAB-0000

STRIPE(65), DAELIM

0.00

14

90001-BA5-0000

COLLAR, SIDE MOUNT

0.00

15

90101-BZ2-0000

BOLT, RR.FENDER SUPPORT

49.00

16

90107-BA1-0010

BOLT, CAP, 8x16

0.00

17

90192-BA1-0000

SCREW, SPECIAL, 5x12

0.00

18

90208-BA7-0000

NUT, FLANGE CAP, 8mm

10.00

19

90485-CB2-0000

WASHER, 8mm

0.00

20

S4050-06080

NUT, FLANGE, 6mm

0.00

21

S4101-06800

WASHER, PLAIN, 6mm

0.00

22

S5701-06018-00

BOLT, FLANGE, 6x18

0.00

Enquiry

F-25 WINKER

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

33400-BZ2-0000

WINKER ASS'Y, RH.FR.

60.00

2

33401-BZ2-0000

BASE A, WINKER

0.00

3

33402-BZ2-0000

LENS A, WINKER

0.00

4

33403-BZ2-0000

REFLECTOR A, WINKER

0.00

5

33450-BZ2-0000

WINKER ASS'Y, LH.FR.

60.00

6

33451-BZ2-0000

BASE B, WINKER

0.00

7

33452-BZ2-0000

LENS B, WINKER

0.00

8

33453-BZ2-0000

REFLECTOR B, WINKER

0.00

9

33600-BZ2-0000

WINKER ASS'Y, RH.RR.

60.00

10

33641-BZ2-0000

STAY COMP., RR.WINKER

0.00

11

33650-BZ2-0000

WINKER ASS'Y, LH.RR.

60.00

12

34905-BA5-9000

BULB, WINKER, 12V, 10W

0.00

13

53208-BZ2-1000

RUBBER, EMBLEM STAY

0.00

14

90111-BZ2-0000

SCREW, SPECIAL, 5x12

0.00

15

90192-BZ2-0000

SCREW, SPECIAL, 5X12

0.00

16

S3901-32520

SCREW, TAPPING, 3x20

0.00

17

S4050-12080

NUT, FLANGE, 12mm

0.00

Enquiry

F-26 TAIL LIGHT

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

33700-BZ2-0000

LIGHT ASS'Y, TAIL

280.00

2

33701-BZ2-0000

LENS, TAIL LIGHT

0.00

3

33702-BZ2-0000

BASE, TAIL LIGHT

0.00

4

33707-BZ2-0000

SOCKET COMP., LICENSE LAMP

0.00

5

33710-BZ2-0000

LICENSE LAMP ASS'Y

20.00

6

33735-BZ2-0000

RUBBER, TAIL LIGHT

0.00

7

34903-SEA-0000

BULB, WEDGE BASE(12V 5W)

0.00

8

S3500-05016-0A

SCREW, PAN, 5x16

0.00

9

S3903-22180

SCREW, TAPPING, 3x8

0.00

10

S3903-24420

SCREW, TAPPING, 4x16

0.00

11

S4050-05080

NUT, FLANGE, 5mm

0.00

12

S4050-06080

NUT, FLANGE, 6mm

0.00

13

S4101-06800

WASHER, PLAIN, 6mm

0.00

Enquiry

F-27 WIRE HARNESS

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

30100-BZ2-0000

UNIT, ENGINE CONTROL

900.00

2

30510-BZ2-0000

COIL COMP., IGNITION

120.00

3

30700-SZ2-0000

CAP ASS'Y, NOISE SUPPRESSOR

0.00

4

31600-SAB-0000-M1

RECTIFIER ASS'Y, REGULATOR

190.00

5

31610-BZ2-0000

STAY, REGULATOR

0.00

6

32100-BZ2-0000

HARNESS, WIRE

700.00

7

35856-BA8-0000

RUBBER, WINKER RELAY SHOCK

0.00

8

35856-SE4-0000

RUBBER, WINKER RELAY SHOCK

0.00

9

3830A-BA8-0000-M1

RELAY ASSY, WINKER

60.00

10

3830A-SE4-0000

RELAY ASS'Y, AP.WINKER

50.00

11

38301-BA6-0300-P

RELAY COMP., AP.WINKER

0.00

12

38301-BA8-0000-M1

RELAY COMP., WINKER

0.00

13

38306-BA8-0000-M1

SUSPENSION, WINKER RELAY

0.00

14

38500-BA4-0010

RELAY ASS'Y, LIGHT

60.00

15

38500-CB4-4000

RELAY ASS'Y, FUEL PUMP

50.00

16

38501-CB4-4000

RELAY COMP., FUEL PUMP

0.00

17

38501-SE6-9810

RELAY COMP., START

0.00

18

38506-BA4-0000

SUSPENSION, LIGHT RELAY

0.00

19

3910A-BA8-0000-M1

FILTER ASS'Y, MOTOR EMI

0.00

20

39100-BA8-0000-M1

EMI FILTER, MOTOR

0.00

21

50128-BZ2-0000

ECU STAY COMP.

0.00

22

90112-BA7-0000

BOLT, FLANGE, 5x22

0.00

23

91410-BA6-0000

CLIP, 2x60

0.00

24

S5701-06016-00

BOLT, FLANGE, 6x16

0.00

25

S5701-06025-00

BOLT, FLANGE, 6x25

0.00

26

S5701-06032-00

BOLT, FLANGE, 6x32

0.00

27

S8200-31500

BLADE FUSE 15A

0.00

28

S8200-33000

BLADE FUSE 30A

0.00

Enquiry

F-28 FRAME BODY

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

11102-BZ2-0000

RUBBER BUSH, ENGINE HANGER

0.00

2

32131-BA5-9000

BAND, HARNESS OFFSET

0.00

3

38110-SZ1-0000

HORN COMP

42.00

4

50100-BZ2-0000

BODY COMP., FRAME

0.00

5

50121-BZ2-0000

TUBE COMP. B, LH.DOWN

0.00

6

50137-BZ2-0000

STAY COMP., IGNITION COIL

0.00

7

50177-BZ2-0000

BRACKET, HELMET HOLDER

0.00

8

5035A-BZ2-0000-AS

PLATE ASS'Y, RH.FR.ENGINE HANGER

0.00

9

50351-BZ2-0000

PLATE, RH.FR.ENGINE HANGER

0.00

10

64318-BZ2-0000

PLATE, FR.SPLASH GUARD

0.00

11

83551-HD2-8900

GROMMET, SIDE COVER

0.00

12

90019-BA5-0000

BOLT, FLANGE, 10x110

0.00

13

90083-BZ2-0000

BOLT, KNOCK, 5x12

0.00

14

90085-BA7-0000-EU

BOLT, DRIVE SPROCKET FIXING, 6x9

0.00

15

90108-SA8-0000

BOLT, RR.CUSHION UNDER

0.00

16

90304-SE6-0000

NUT, U, 10mm

0.00

17

90652-BA7-7720-M2

BAND, WIRE(BLACK)

0.00

18

S4050-08070

NUT, FLANGE, 8mm

0.00

19

S4101-10700

WASHER, PLAIN, 10mm

0.00

20

S5701-06010-00

BOLT, FLANGE, 6x10

0.00

21

S5701-06010-07

BOLT, FLANGE, 6x10

0.00

22

S5801-10130-07

BOLT, FLANGE, 10x130

0.00

23

S6700-08025-07

BOLT, SOCKET, 8x25

0.00

24

84303-BA1-0000

RUBBER A, FR.METER COVER SETTING 1 Y

0.00

25

84304-BA1-0000

COLLAR A, FR.METER COVER SETTING

0.00

Enquiry

F-29 TOOL

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

89010-BA1-RB00

TOOL SET

0.00

2

89102-CB2-0000

DRIVER, NO.2 PLUS MINUS

0.00

3

89103-CB2-0000

GRIP

0.00

4

89104-SZ1-0000

BAG, TOOL, 160mm

0.00

5

89216-BA1-0000

WRENCH, BOX

0.00

6

89221-BA5-0000

WRENCH, HEX, 5

0.00

7

S9001-08100

SPANNER, 8x10

0.00

8

S9001-BA7-0300-M1

SPANNER, 10x12

0.00

9

S9001-BA7-0600-M1

SPANNER, 14x17

0.00

Enquiry

F-30 RADIATOR/RADIATOR HOSE

Click to enlarge

Ref No.

Part No.

Description

Price (RM)

Enquiry

1

19011-SA1-0000

COLLAR, RADIATOR

0.00

2

19012-SA1-0100

RUBBER, RADIATOR

0.00

3

1910A-BZ2-0000

TANK ASS'Y, RESERVE

90.00

4

19101-BZ2-0000

RESERVE TANK, RADIATOR

0.00

5

19105-SZ1-0000

CAP, RESERVE TANK

5.00

6

19131-BA8-RZ00

GRILL, RADIATOR

39.00

7

19132-BA8-RZ00

STAY, RADIATOR GRILL RH.

0.00

8

19133-BA8-RZ00

STAY, RADIATOR GRILL LH.

0.00

9

1930A-BZ2-0000

RADIATOR ASS'Y

0.00

10

19300-BZ2-0000

RADIATOR COMP.

630.00

11

19332-BZ2-0000

COVER, RADIATOR RH.

35.00

12

19342-BZ2-0000

COVER, RADIATOR LH.

32.00

13

19351-BZ2-0000

CAP, RADIATOR

10.00

14

19352-BA8-0000

BODY, RADIATOR CAP

26.00

15

19354-BA8-0010

CLIP A25, TUBE

0.00

16

19354-SZ1-0000

CLIP A25, TUBE

0.00

17

19361-BZ2-0000

BRACKET COMP., FAN MOTOR

30.00

18

19381-BZ2-0000

TUBE ASS'Y C, WATER PASS

0.00

19

19383-BA8-0000

TUBE ASS'Y D, WATER PASS

0.00

20

1939A-SZ1-0000-M1

MOTOR ASS'Y, FAN

265.00

21

19501-BA8-0000

HOSE A, RADIATOR

32.00

22

19502-BA8-0000

HOSE B, RADIATOR

32.00

23

19503-BZ2-0000

HOSE C, RADIATOR

50.00

24

90001-SAB-0000

SCREW, TORUS, 6x14(SUS)

0.00

25

90101-CB3-0000

BOLT, ADJUST

0.00

26

90110-SE5-0000

SCREW, SPECIAL, 6x14

0.00

27

90113-CB3-0000

BOLT, FLANGE, 6x17

0.00

28

91509-BA6-7600

SCREW, PAN, 5x11.5

0.00

29

S3405-06012-08

BOLT, WASHER, 6x12

0.00

30

S5701-06016-00

BOLT, FLANGE, 6x16

0.00

31

S5701-06018-00

BOLT, FLANGE, 6x18

0.00

Enquiry
